QD-3007B Puncture Resistance Tester
＞＞＞Introduction
About product
With a wide range of applications, it is an indispensable instrument for paperboard, carton production, scientific research and commercial inspection enterprises and departments. Specifically designed to measure crepe board puncture resistance (puncture strength) in joules, it evaluates packaging integrity by simulating real-world impacts from other containers or conical objects during transportation. The device provides precise data to assess damage levels and ensure structural safety of corrugated boxes.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

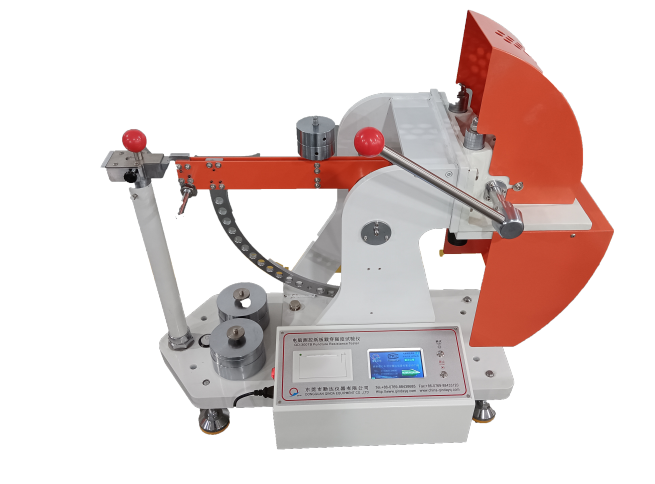

＞＞＞Product pictures
＞＞＞Standard
ISO3036 "Determination of puncture strength of cardboard"
GB T2679.7 "Determination of puncture strength of cardboard"
TAPPI T803 《Puncture test of container board》
＞＞＞Parameters(we support customization parameters)
1. The measurement range of the instrument is (1 ~ 48) J, and the whole measurement range is divided into four grades. The measurement range and indication error of each grade are as follows:
Trough (measurement range) and error: A(1～6)±0.05J, B(1～12)±0.10J,
C（1～24）±0.20J D（1～48）±0.50J
2.Power supply: AC 220V±22V,50Hz, 5A
3. Overall weight: about 150kg
4. Appearance size: 860mm×500mm×800mm
＞＞＞Standards
ISO3036 "Determination of puncture strength of cardboard"
GB T2679.7 "Determination of puncture strength of cardboard"
TAPPI T803 《Puncture test of container board》
＞＞＞Features
1. The computer measurement and control system adopts digital circuit with single chip microcomputer as the core, and realizes simple man-machine dialogue function through LCD Chinese display operation prompts and panel key input instructions;
2. Firm steel structure to avoid energy loss caused by vibration during the test;
3.90 degree bow-shaped swing arm; triangular pyramid impact head (produced according to international standards);
4. Separation mechanism with protection system, safety protection screen cover; self-tightening anti-loosening clamp with adjustable pressure
5. Powerful data processing function, can not only convert the double fold number and corresponding logarithm of a single sample, but also can statistically calculate the experimental data of multiple samples in the same group, can calculate the maximum value, mini mum value and average value of samples in the same group. In addition, it also has data storage, statistics, printing and other functions;
6. The instrument has compact structure and beautiful appearance with high-end enamel treatment for convenient maintenance

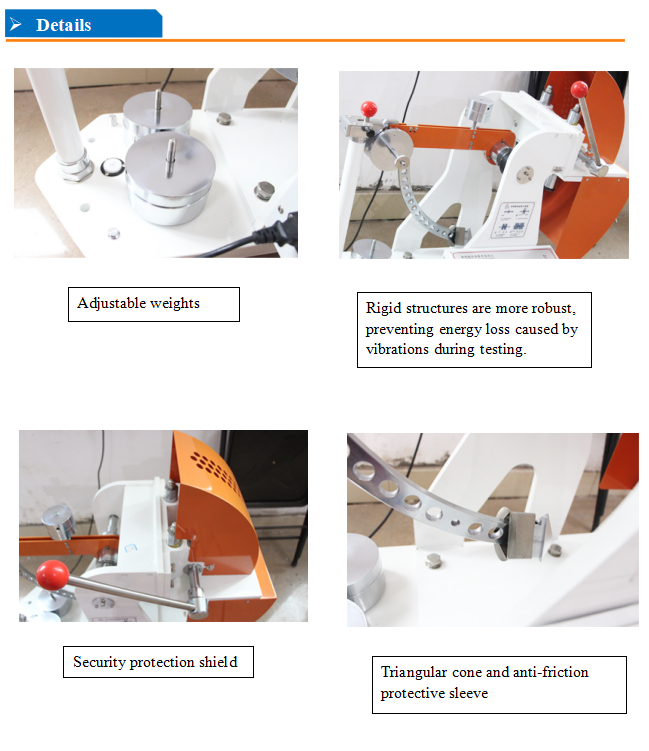

＞＞＞Details
