Bursting Strength Ring Crush Strength Testing Machine（BST，RCT）
＞＞＞Introduction
About product
The QD-3000 Cardboard Box Comprehensive Tester, independently developed and manufactured by our company, is a new all-in-one testing equipment suitable for the cardboard box industry. It has obtained three major patents: National Invention, Utility Model, and Design.
Features include:
- Original Paper Burst Resistance Test
- Cardboard Burst Resistance Test
- Original Paper Ring Press Test
- Cardboard Edge Press Test 6. Cardboard Flat Press Test
- Cardboard Adhesion Test
- Cardboard Thickness Test
- Original Paper Thickness Test. The instrument is equipped with auxiliary tools for the following tests (compression section):
—— Ring Press Test Center Plate and dedicated ring press sampler for RCT;
—— Edge Press (Adhesion) Sample Sampler and auxiliary guide blocks for ECT;
—— Peel Strength Test Frame for PAT;
—— Flat Press Test Sampler for FCT;
—— Groove Tester and auxiliary tools for CCT and CMT laboratory groove tests.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

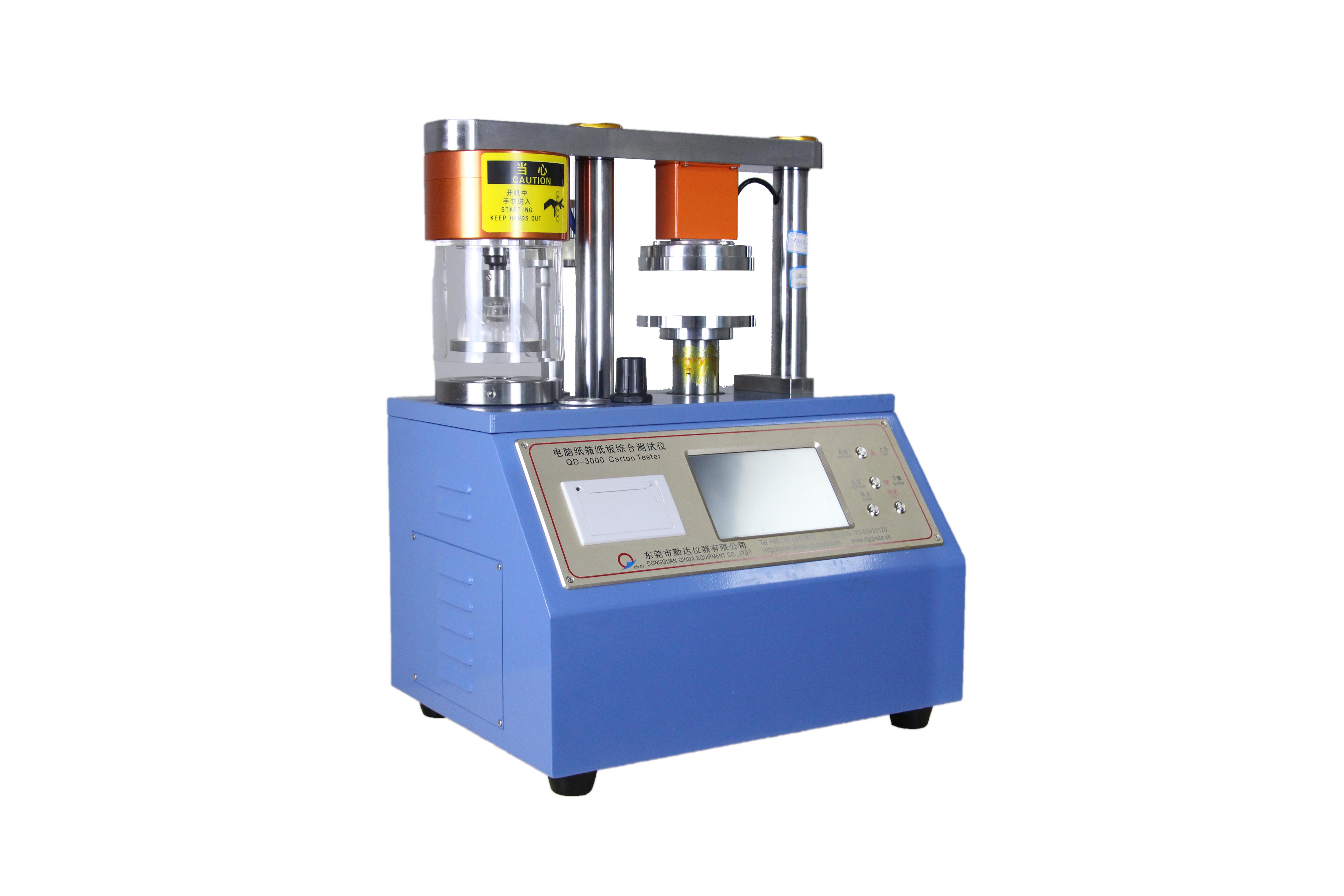

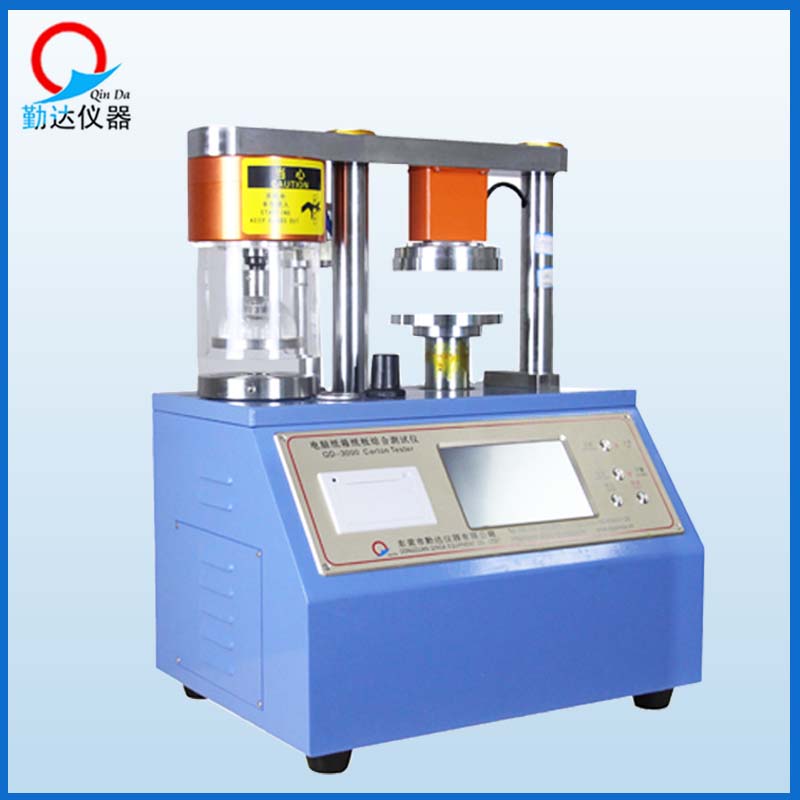

＞＞＞Product pictures
＞＞＞Standard
ISO2759 "Cardboard-Method for Determining Burst Resistance",
GB1539 "Method for Determining Burst Resistance of Cardboard",
ISO2758 "Paper-Method for Determining Burst Resistance",
GB454 "Method for Determining Burst Resistance of Paper",
GB2679.8 "Method for Determining Ring Press Strength of Cardboard",
GB6546 "Method for Determining Edge Press Strength of Corrugated Board",
GB6548 "Method for Determining Adhesion Strength of Corrugated Board",
GB2679.6 "Method for Determining Flat Press Strength of Corrugated Core",
GB 451-3 "Method for Determining Thickness of Paper and Cardboard"
＞＞＞Parameters(we support customization parameters)
| Items |
Specifications |
| BST |
Crush |
Thickness |
| Measuring Range |
（250～5600）kPa |
60-3000N |
0.01-60mm |
| Resolution |
1kPa |
0.1N |
0.001mm |
| Units |
Kgf/cm2、Lb/in2、kPa |
Kgf\N\Lbf |
mm |
| Accuracy |
±0.5%FS |
0.005mm |
| Speed |
(175 ±15)ml/min |
12.5MM/min |
| film resistance |
Rise high |
10mm |
18mm |
Measuring high：0.01- 60MM |
| Resistance value |
(170～220)kPa |
(250～350)kPa |
Platen size：Φ120MM |
| Clamp pressure） |
＞1000kPa |
(Platen parallelism)：<0.05mm |
| Weight |
≈65kg |
＞＞＞Standards
ISO2759 "Cardboard-Method for Determining Burst Resistance",
GB1539 "Method for Determining Burst Resistance of Cardboard",
ISO2758 "Paper-Method for Determining Burst Resistance",
GB454 "Method for Determining Burst Resistance of Paper",
GB2679.8 "Method for Determining Ring Press Strength of Cardboard",
GB6546 "Method for Determining Edge Press Strength of Corrugated Board",
GB6548 "Method for Determining Adhesion Strength of Corrugated Board",
GB2679.6 "Method for Determining Flat Press Strength of Corrugated Core",
GB 451-3 "Method for Determining Thickness of Paper and Cardboard"
＞＞＞Features
1.The world's first cardboard carton comprehensive tester.
2.Obtained three national patents for invention, utility model and appearance.
3.Obtain CPA certificate.
4.The 7-inch touch-screen intelligent microcomputer system 5.can switch between Chinese and English language control systems.
6.high-precision force sensors.
7.User-friendly menu interface.
8.Power protection ensure automatic record when power cut off.
＞＞＞Packing list
1 machine, 1 power cord, 1 oil cup, 1 bottle of silicone oil (250ml), 2 rolls of thermal printing paper,1 air pipe(φ8mm), 1 special spanner, 3 rubber film, 10 aluminum foil,1 manual(including certificate, warranty card)
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
