Tissue Paper Ball Burst Tester
＞＞＞Introduction
About product
Model QD‑3061 Ball Burst Strength Tester (hereinafter referred to as tester) is the dedicated instrument for ball‑burst‑strength test of tissue paper and tissue products. Its performance parameters and technical indexes comply with GB/T 24328.7‑2009, GB/T 10004‑2008 and other relevant standards.
It is mainly applied to determine ball burst strength of various tissue paper products, as well as puncture strength of plastic laminated films and bags for packaging. (Special fixture is required for puncture test)
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

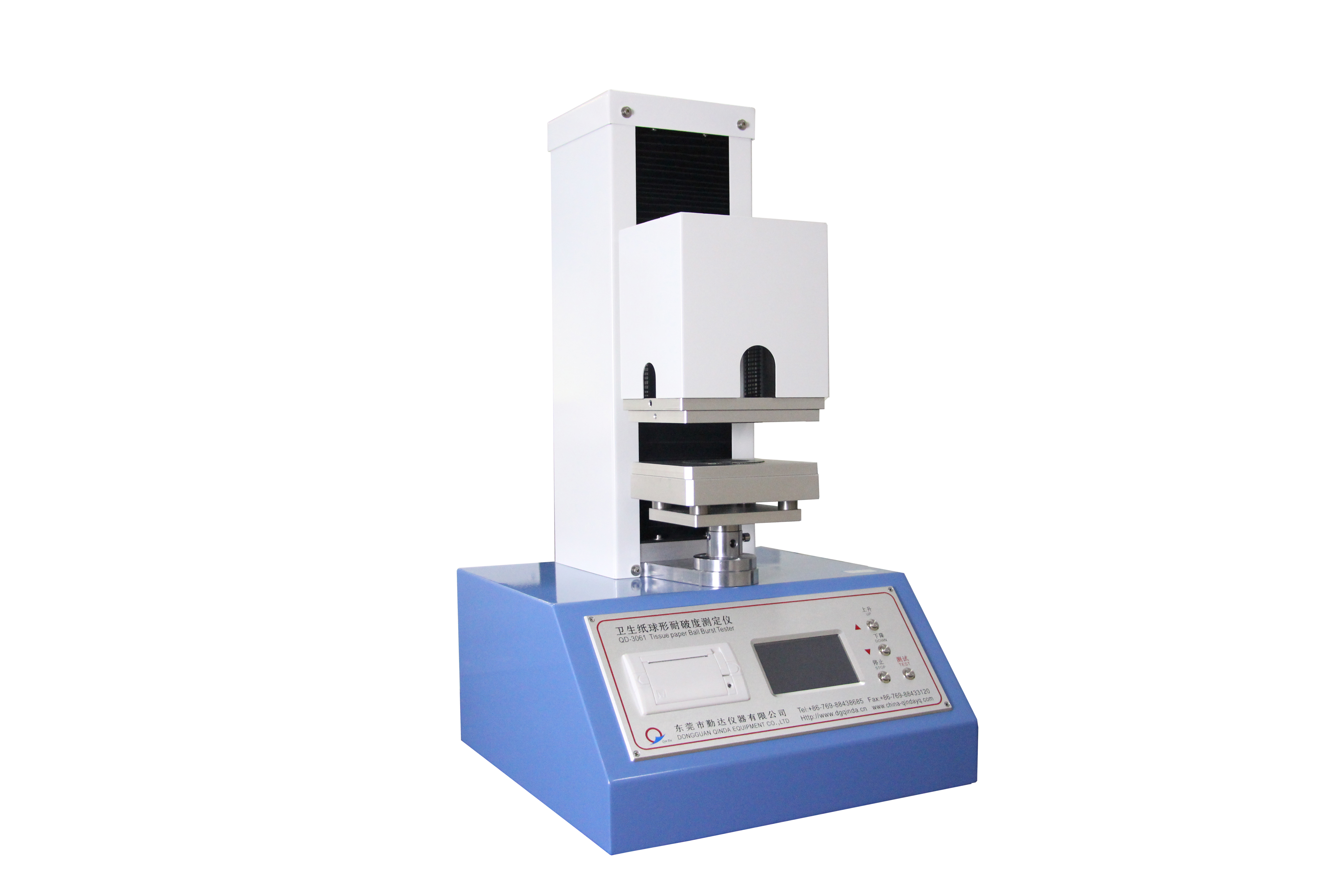

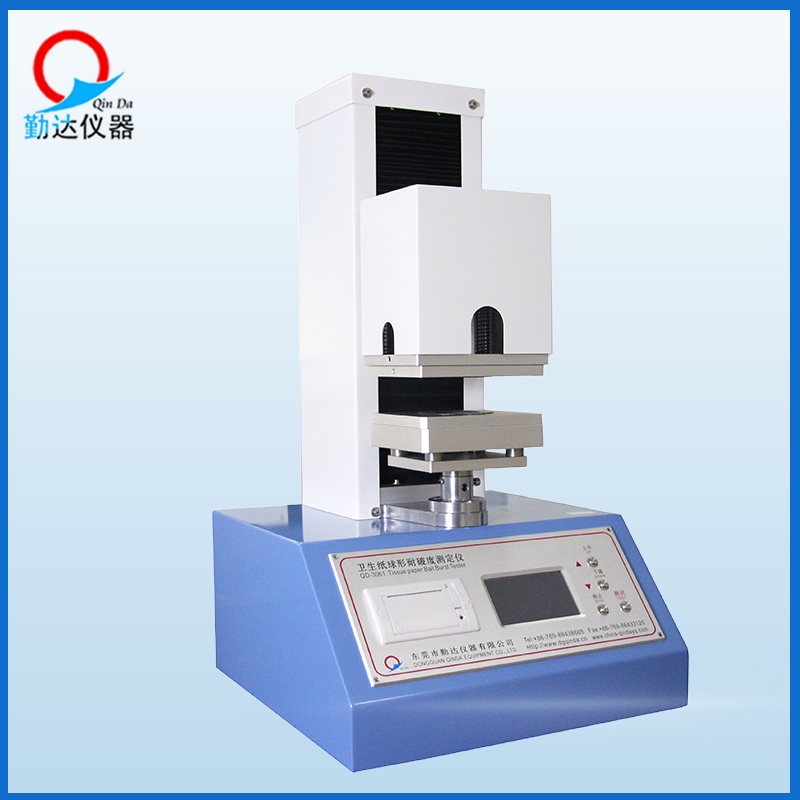

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Technical Index |
| Measuring Range |
1~20N |
| Indication Accuracy |
Indication error: ±1%, Indication variability ≤1% |
| Max Displacement |
＞100mm (excluding fixture) |
| Elongation Measurement Accuracy |
±0.1mm |
| Standard Test Speed |
(125±5)mm/min |
| Test Speed Adjustment Range |
(5.5～350)mm/min |
| Test Speed Error |
(5～10)mm/min: ±1mm/min(10～180)mm/min: ±5% |
| Clamp Gap(Test Length) |
Adjustable |
| Clamp Gap Positioning Error |
±0.5mm |
| Movable Clamp Reset Error |
±0.1mm |
| Inner Diameter of Upper & Lower Clamping Ring |
(89.0±0.2)mm and/or (50.0±0.2)mm |
| Coating Width of Clamping Ring |
≥12.5mm |
| Test ball Diameter |
(16.0±0.05)mm |
| Overall Dimension |
410mm×400mm×740mm |
| Net Weight |
About 55kg |
＞＞＞Features
1.High-precision.
2.Easy to use.
3.Stable performance.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
