Textile/Carton/Paper Automatic Rupture Strength Testing Machine/Bursting Tester
  • Textile/Carton/Paper Automatic Rupture Strength Testing Machine/Bursting Tester

Textile/Carton/Paper Automatic Rupture Strength Testing Machine/Bursting Tester

Item No.: QD-3005B
INQUIRY






 Textile/Carton/Paper Automatic Rupture Strength Testing Machine/Bursting Tester

>>>Introduction
About product
Bursting Strength Tester is a testing equipment for testing the bursting-resistance strength of paper and corrugated boars,independently developed and produced by our company. It can realize curve display and data query comparison function without external computer. In addition to the international unit KPa, the test machine also sets the foreign unit Lb/in2; After the test is completed, the instrument will automatically convert and display the bursting-resistance index result of paper.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of  Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

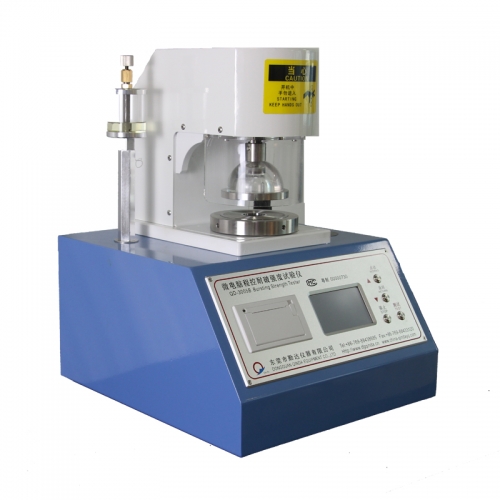

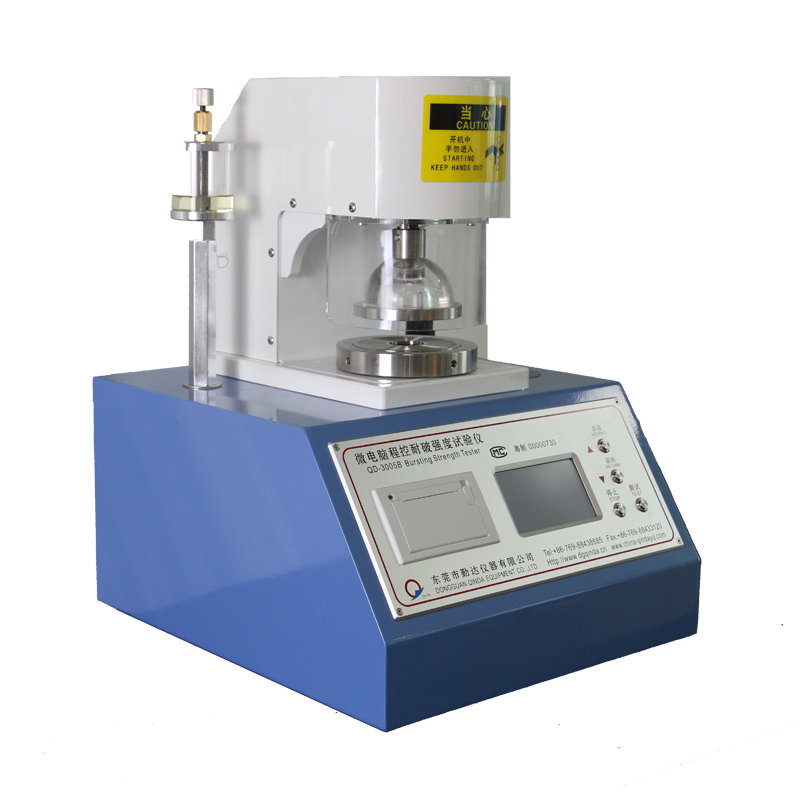

>>>Product pictures

>>>Parameters(we support customization parameters)
Items Specifications
QD-3005B Type
Measuring Range (2505600)kPa
Resolution 1kPa
Indication accuracy indication error ±0.5%FS
Volatility ≤0.5%
Speed of Pressure(oil) (175±15)ml/min
Size of clamp ring GB1539
film
resistance
Rise high 10mm 18mm
Resistance value 170220KPa 250350KPa
Clamp pressure 690KPajustable
Tightness Pressure reduction in 1min10%Pmax
weight 55kg
Pressure gauge 110Kg/cm2

>>>StandardsISO2759 GB/T1539 ISO2758 GB/T454

>>>Features
1. It is applicable to test bursting strength for paperboard.
2. Advanced micro computer controller and digital processor ensure result precise.
3. Printer facility and fully detailed test reports.
4. Results of the tests are stored for viewing or for printing out as required.
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.


>>>Packing list
1 machine, 1 power cord, 1 oil cup, 1 bottle of silicone oil (250ml), 2 rolls of thermal printing paper,1 air pipe(φ8mm), 1 special spanner, 3 rubber film, 10 aluminum foil,1 manual(including certificate, warranty card)

>>>Why choose us
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.

5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.

Please feel free to contact us any time if you have problems.
