Short Span Compression Tester / SCT Short Span Compression Tester
＞＞＞Introduction
About product
Model QD-3013J Short-Span Compressive Strength Tester (h ereinafter referred to as the Tester) is a fundamental testing instrument for evaluating the short-span compressive strength performance of paper and paperboard. All its performance parameters and technical indicators comply with standards including GB/T 2679.10 Paper and board — Determination of short-span compressive strength and ISO 9895:2008 Paper and board — Compressive strength — Short-span test. This tester is mainly applied to measure the short-span compressive strength of paper and paperboard.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

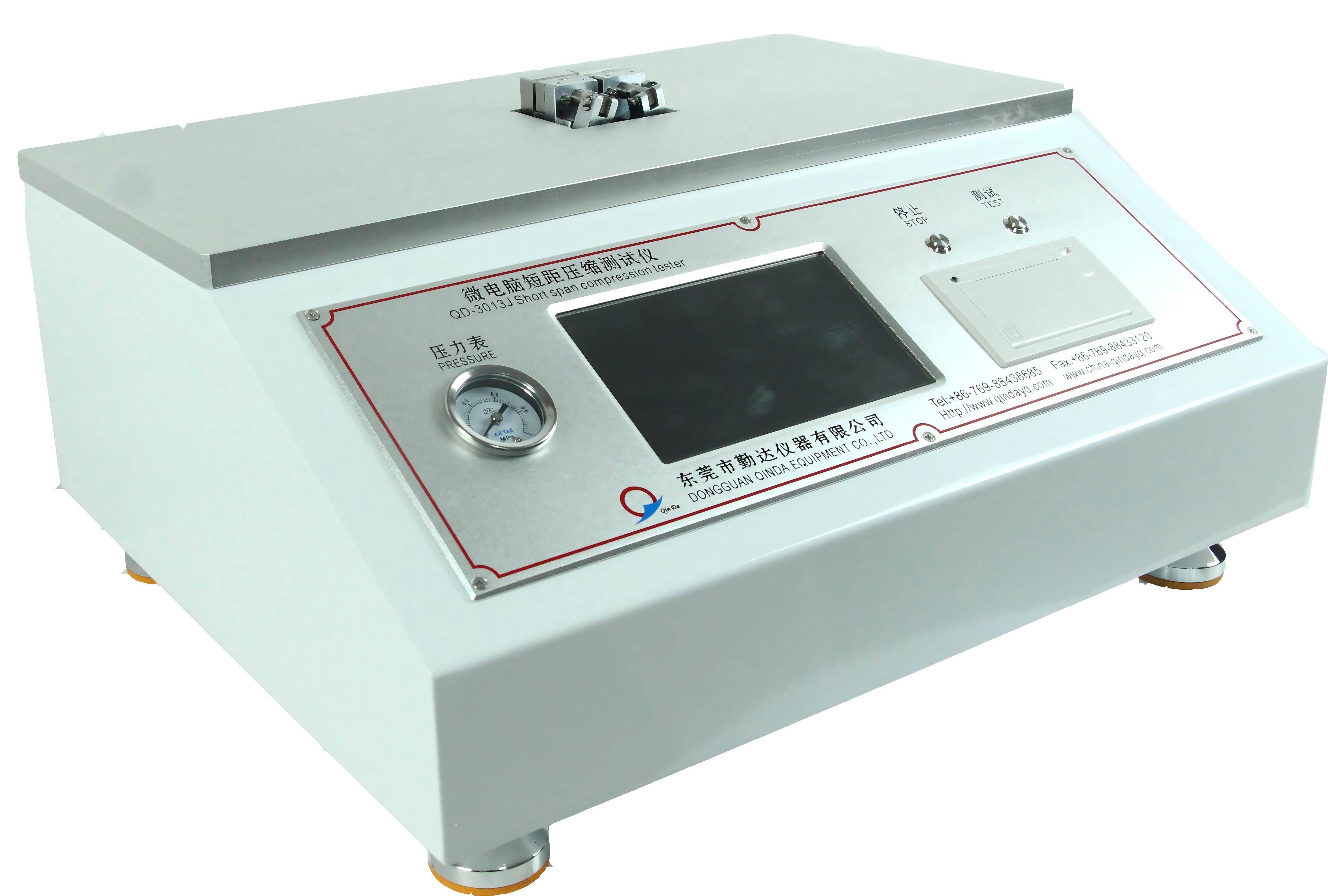

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Measuring Range |
1~500 N |
| Resolution |
0.1 N |
| Indication & Repeatability Error |
Relative indication error ≤1%,
repeatability error ≤1% |
| Relative Drift of Zero-point & Calibration Value |
≤0.2% |
| Span Between Clamps Range |
0.1～1 mm |
| Standard Test Speed |
3 mm/min ±1 mm/min |
| Adjustable Test Speed Range |
2~10 mm/min |
| Specimen Clamping Force |
(2300±500) N |
| Clamp Span (Reset Stroke) |
0.7 mm, adjustable |
| Clamp Length |
30 mm |
| Clamp Width |
＞15 mm |
| Positioning Error of Clamp Span |
±0.05 mm |
| Print Output |
Integrated modular thermal printer |
| Power Supply |
AC 220V±10%, 2A, 50Hz |
| Safety Devices |
- Motor overload automatic stop protection
2. Earth-leakage circuit-breaker automatic power-off function
|
＞＞＞Standards：
GB/T 2679.10 《Paper and board — Compressive strength — Short-span test》
ISO9895-2008 《Paper and board—Compressive strength—Short-span test》
＞＞＞Features
· One-key automatic test: The instrument automatically calculates and records the maximum, mini mum and average values of force and deformation. Based on specimen width and basis weight parameters, it further computes average compressive strength, compressive index and other test data.
· Equipped with thermal print core; no ink ribbon is required. It eliminates the trouble of ribbon replacement and ink refilling, greatly reducing failure rate, and delivering high-speed, low-noise printing.
· Operation & display interface: High-definition color LCD touch screen with instant Chinese/English language switching. Adopting interactive graphical interface without physical buttons; all operations are completed by direct touch on screen. The user-friendly man-machine interface makes operation simpler and more humanized.
· Multiple protection mechanisms: The machine is built with comprehensive safety protections including travel limit protection, over-range measurement protection, and motor stall & over-current protection, ensuring safer, more stable and reliable operation.
· Machine frame appearance: Premium baking finish treatment, featuring elegant appearance and long service life.
· Stable and reliable performance, high measurement precision, powerful test software functions, simple operation.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
