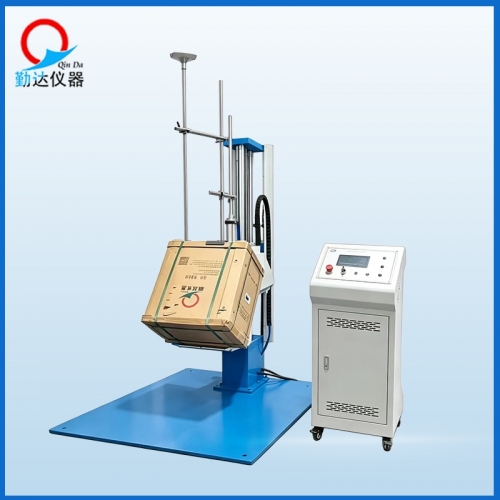

Pneumatic Single-arm-drop Tester
＞＞＞Introduction
About product
Model QD-3015Q Pneumatic Single-Wing Drop Tester is specially designed to check damage of product packages after dropping and evaluate their impact resistance during transportation and handling. Packages are inevitably dropped or collided with hard objects in transit. To prevent damage in advance and reduce logistics loss, this drop tester has become essential testing equipment for most manufacturers to inspect carton performance supplied by vendors.
Our single-wing drop tester adopts screw drive to lift and lower the drop arm, equipped with digital height gauge for accurate and clear height reading, easy operation. The drop arm moves smoothly with minor height error. Samples can fall freely instantly, and the surface, edge and corner of packaging containers are all available for testing.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

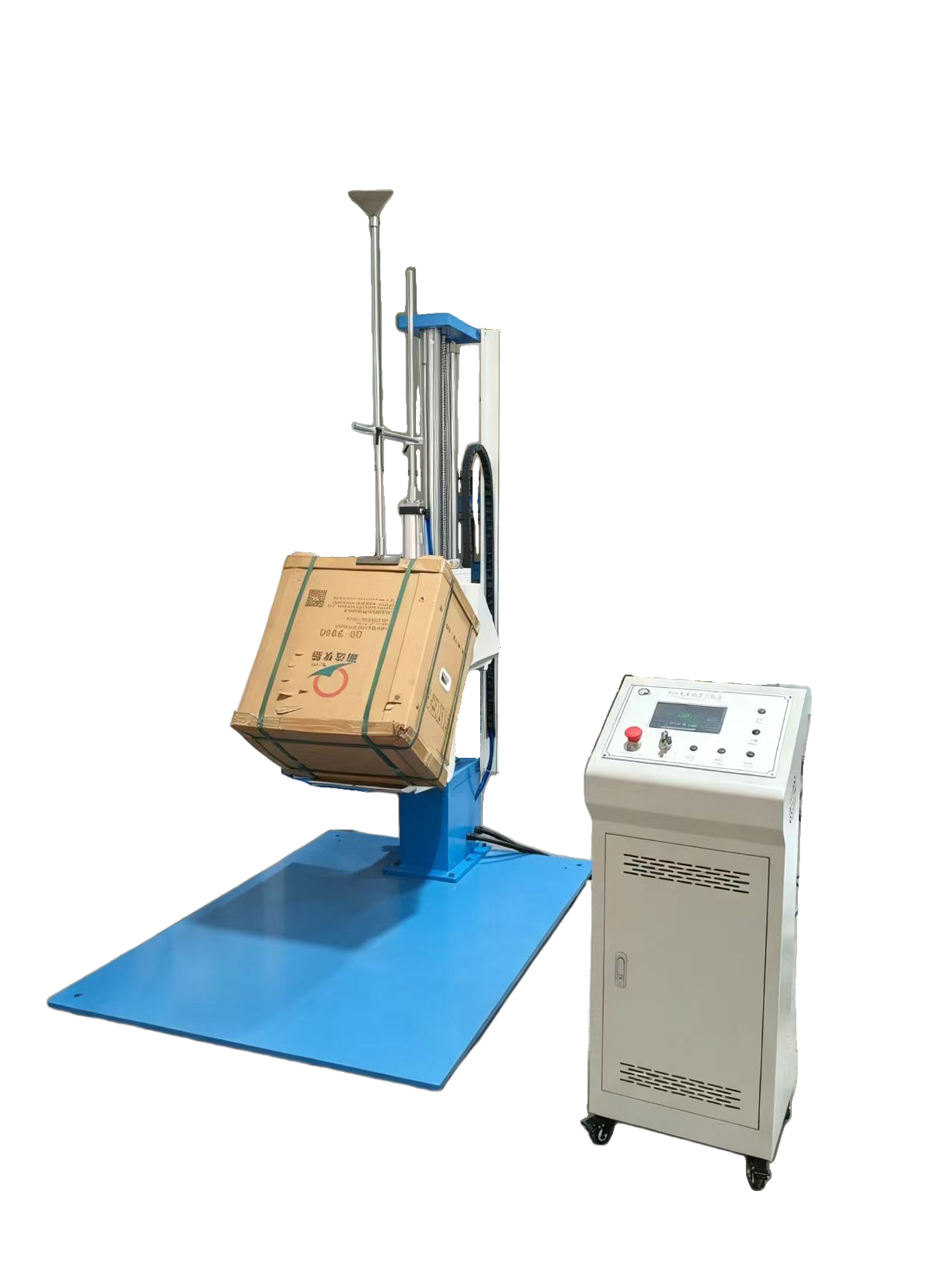

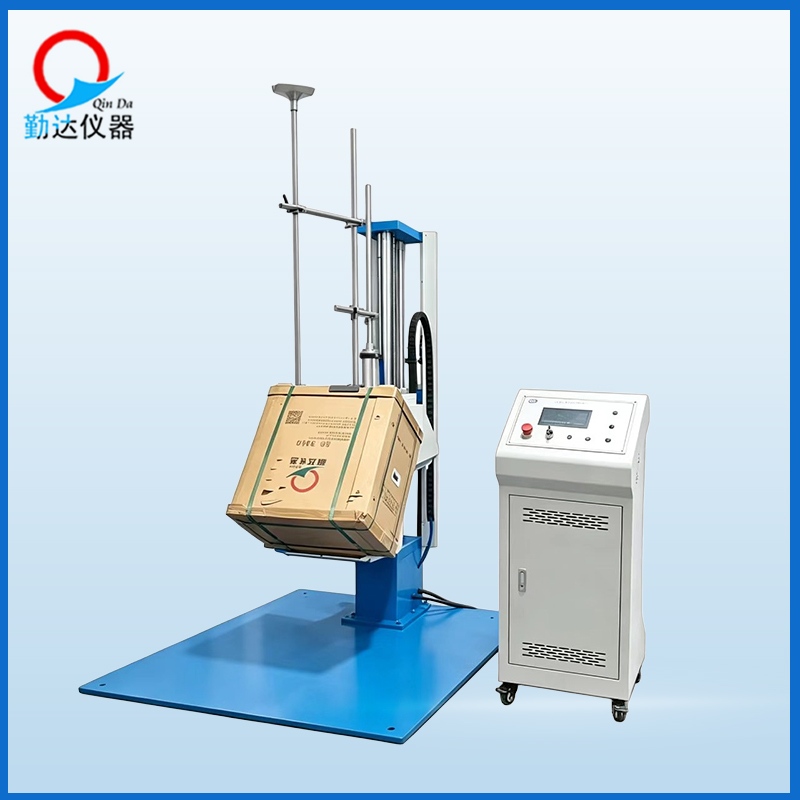

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Power Supply |
AC220V, 50Hz |
| Power |
300 W |
| Drop Height |
300～1500 mm (1.8m optional) |
| Max. Test Load |
120kg |
| Max. Specimen Size |
1000 mm×650mm |
| Impact Panel Size |
1700 mm×1200mm |
| Drop Angle Tolerance |
＜1° |
| Drop Height Tolerance |
±10mm |
| Overall Dimension |
Approx. 1700×1200×2130mm |
| Net Weight |
Approx. 300kg |
| Air Source |
Air tank ≥20L, air pressure ≥0.5MPa, user self-provided |
| Air Pipe Diameter |
Φ12mm |
＞＞＞Standards：
ISO 2248 Packaging — Complete, filled transport packages — Vertical impact test
JIS Z0202 Packaged goods — Drop test method
GB/T4857.5 Packaging — Transport packages — Drop test method
＞＞＞Features
1.Fully complies with and exceeds industrial standards including GB, IEC, ASTM, ISTA
2.Supports surface, corner and edge drop tests
3.Equipped with precise guide system and pneumatic drive Unique swing arm structure design

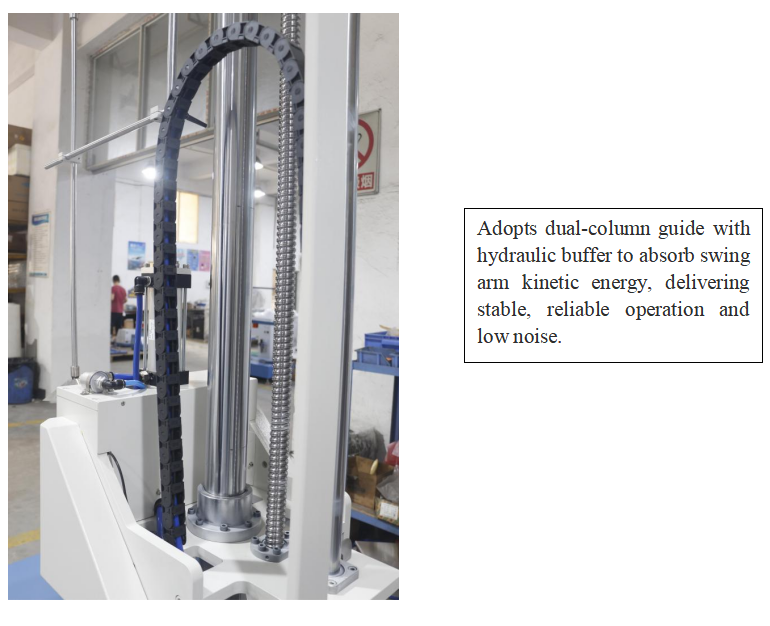

5.Dual-column guide with hydraulic buffer to absorb swing arm kinetic energy, featuring stable operation, reliable performance and low noise
6.Self-locking screw lifting mechanism prevents accidental sliding of drop assembly
7.Pneumatic interlock safety design to avoid abnormal swing arm falling
8.Expandable support bracket and base plate available

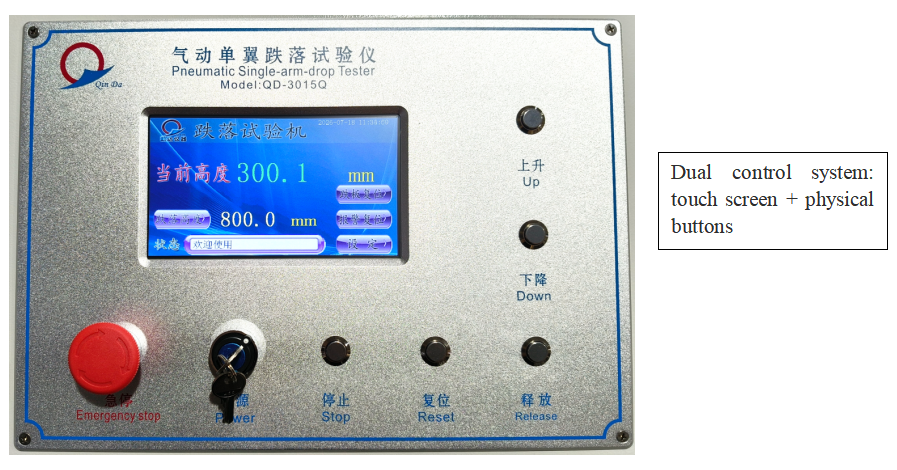

9.Dual control system: touch screen + physical buttons
＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
