Box / Carton Packing Material Slope Inclined Impact Testing Machine
＞＞＞Introduction
About product
Model YQD‑3115 Inclined Impact Tester is specially used to evaluate the damage of product packages and unit‑loads subjected to horizontal shock and collision during real‑world transportation and handling. It assesses the shock‑resistance performance of packages and unit‑loads, and verifies the rationality of packaging design.
This tester is mainly applied for shock test of large‑size packages and cargoes. A sliding trolley serves as sample carrier. The test product shall be stably placed on the trolley as per test requirements. During test, the trolley slides down along the track and drives the sample to strike the vertical end baffle, so as to simulate horizontal shock and collision of specimens.
Test Principle: The sample is impacted against a baffle perpendicular to moving direction at preset status and preset speed, so that the test.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

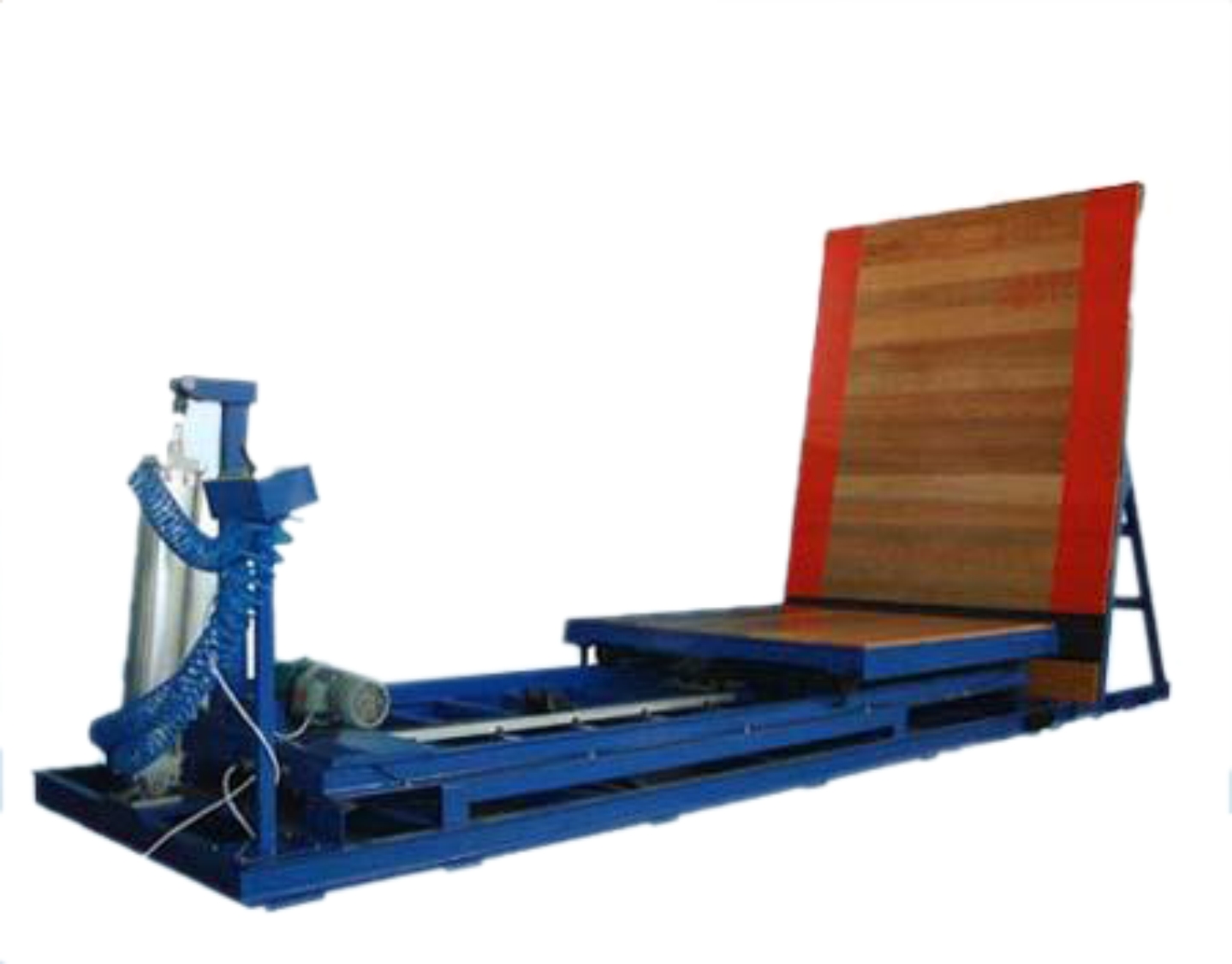

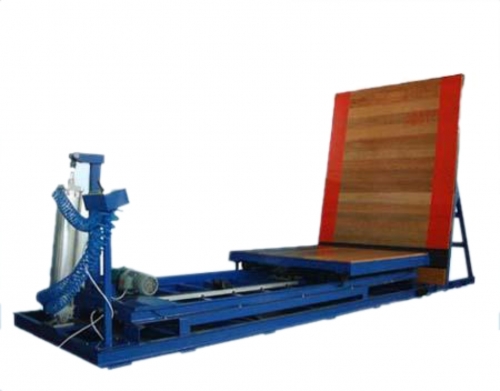

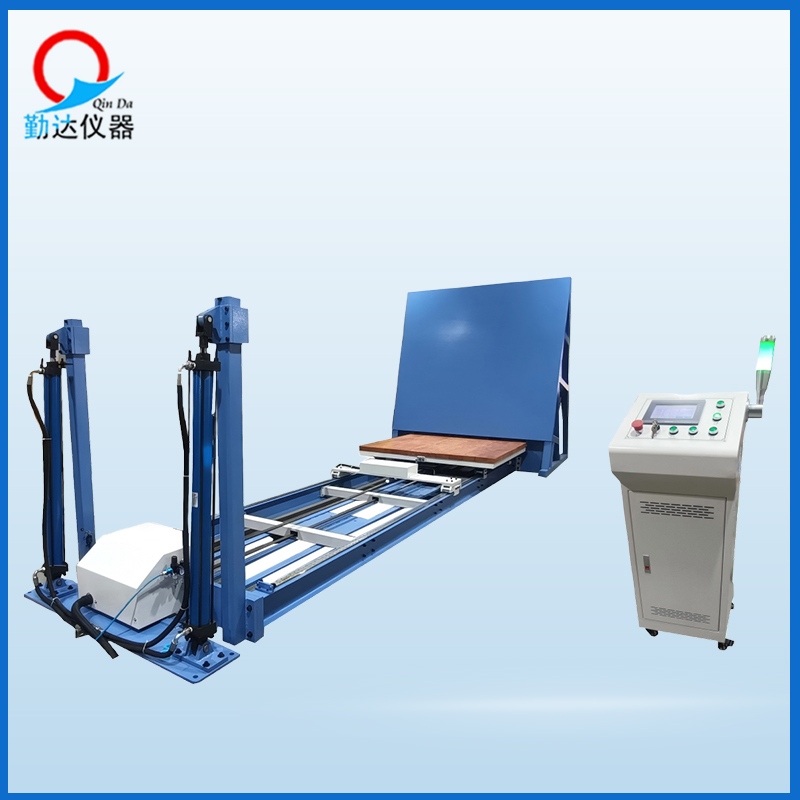

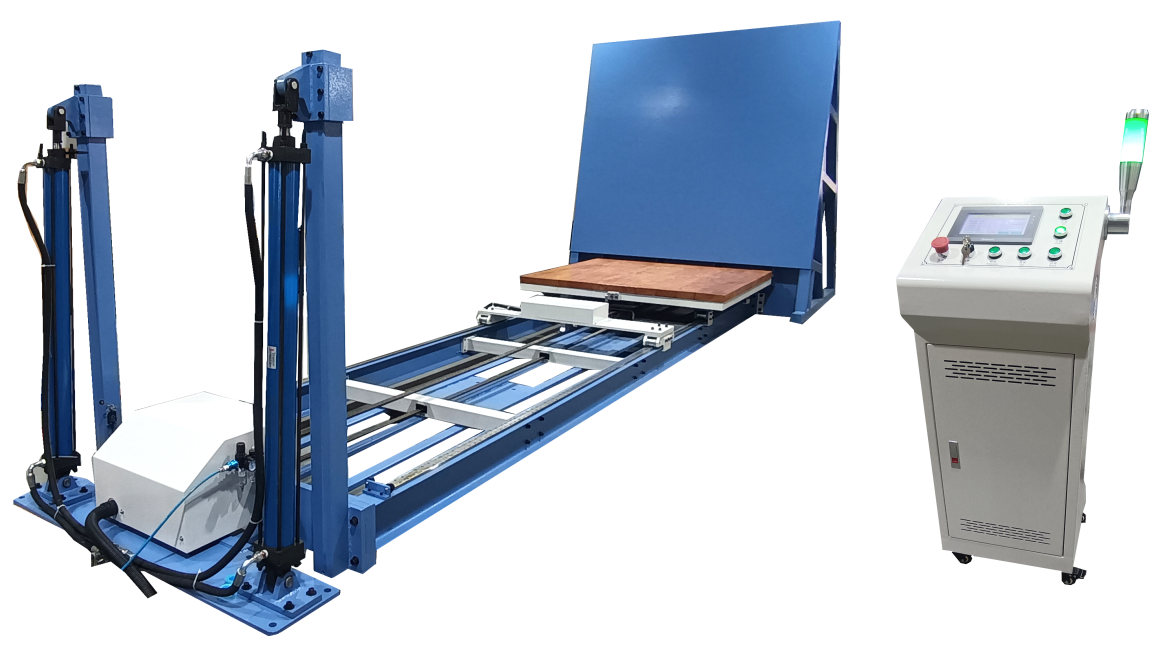

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Technical Index |
| Power Supply |
AC380V, 50Hz, Power:2.0kW, 3-phase 5-wire |
| Sliding Length |
0 mm～2800 mm |
| Impact Speed |
0～3.0 m/s |
| Maximum Load |
500kg |
| Trolley Dimension |
1200 × 1200 mm |
| Impact Plate Dimension |
1500 mm × 1800 mm |
| Impact Angle |
10°; Trolley can be adjusted to horizontal position for easy sample mounting |
| Angle Error |
±0.2° |
| Driving Mode |
Motor-driven, hydraulic lifting, pneumatic locking & releasing |
| Impact Mode |
Face-impact, edge-impact, corner-impact |
| Sample Lifting Speed |
＜20 s/m |
| Protection Device |
Upper & lower inductive protection |
| Material of Impact Plate |
A3 steel plate |
| Transmission Mode |
Linear guide, chain drive |
| Release Mode |
Pneumatic release |
| Overall Dimension of Test Bench |
Approx. 7000 mm × 1500 mm × 2200 mm |
| Operation System |
LCD touch-screen for operation & display; adjustable impact distance and impact speed; auto-stop function |
| Net Weight |
Approx. 1500 kg |
| Air Source |
6 kg (Customer-supplied) |
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
