Integrated Handsheet Former With Press / Handsheet Forming & Press All‑in‑one Machine
＞＞＞Introduction
About product
Our YQD-3112B Handsheet Former is designed for research and laboratory tests in papermaking research institutes and paper mills. It is a lab instrument for manual handsheet forming and rapid vacuum drying.
After cooking, beating and screening of plant fiber, mineral fiber and other fibers, the pulp is disintegrated according to standard procedures and poured into the forming cylinder. After stirring, rapid vacuum filtration forms wet handsheets, which are then heated and vacuum dried on this machine to obtain standard samples for subsequent physical property tests.
Integrating vacuum filtration forming and vacuum drying with full electric control, this instrument supports forming and drying of ultra fine fiber, nano fiber and extra thick handsheets.
Its technical specifications comply with Chinese standards for papermaking physical testing instruments. Reference Standard: GB/T 24324 2009 Pulp Preparation of laboratory sheets for physical testing Conventional handsheet former method.
Working Principle Under vacuum condition, handsheets are formed from pulp suspension on metal wire screen. After pressing, the wet sheets are dried under specified conditions to produce standard test ready paper samples.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

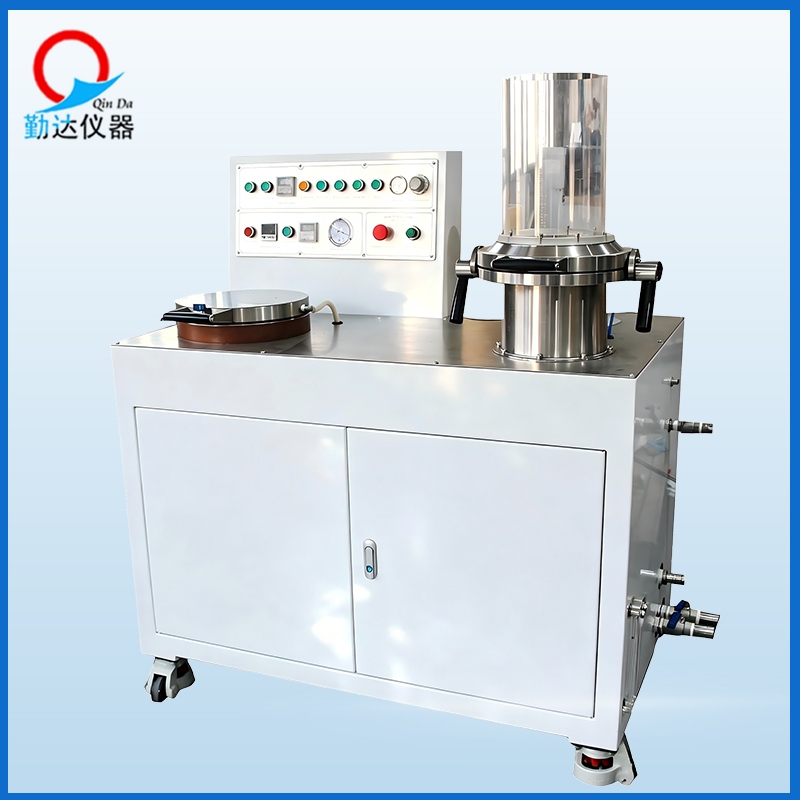

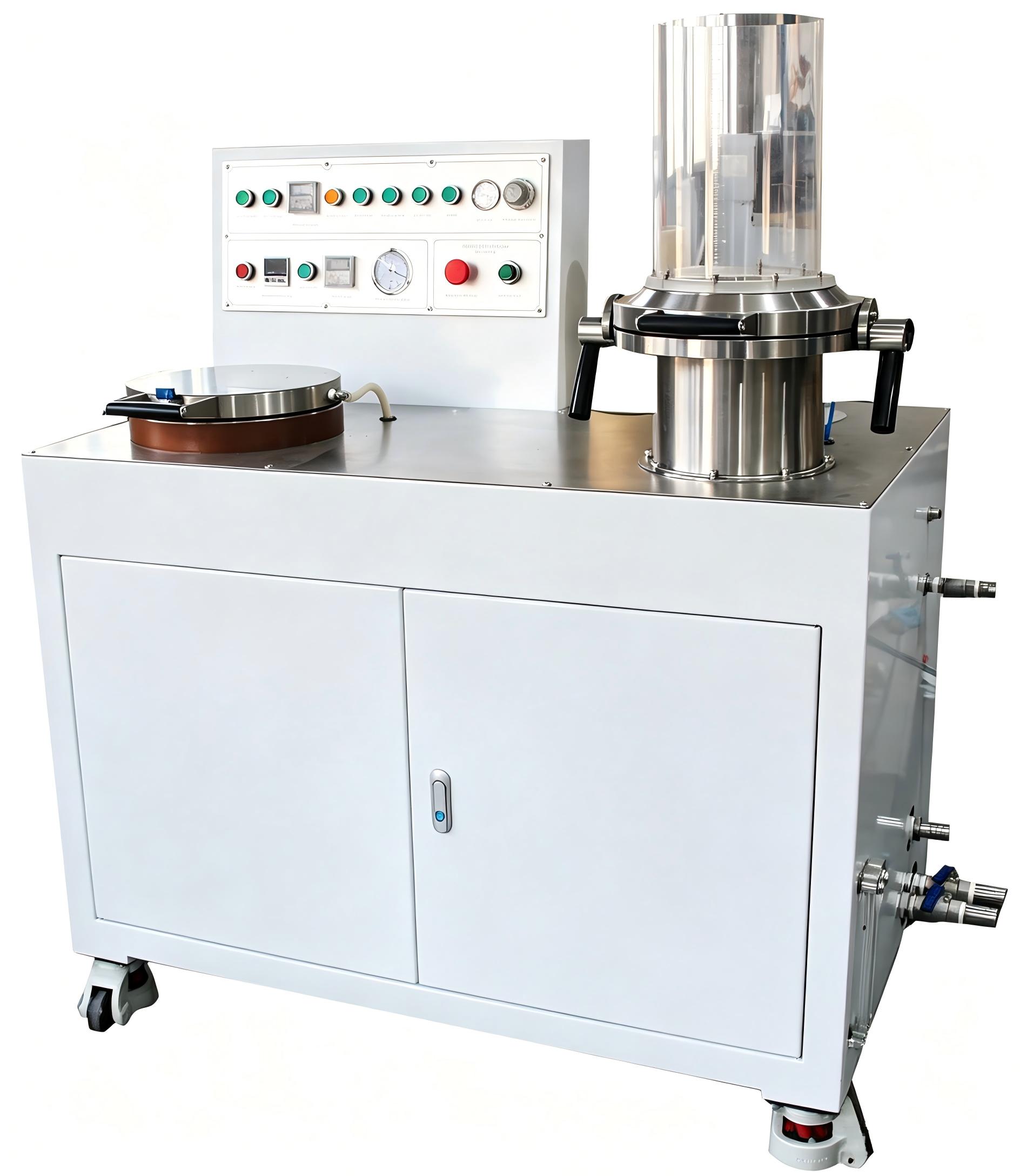

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Cylinder Diameter |
φ200mm |
| Cylinder Volume |
10 L |
| Formed Handsheet |
Min. weight 0.1g, Max. thickness 10 mm |
| Drying Temperature |
≤105℃ |
| Drying Time |
3 6 min (basis weight 30 80 g/m²) |
| Temperature Control |
PID auto calculation control |
| Vacuum Degree |
-0.092 ~ -0.098 MPa |
| Overall Dimensions |
1290×720×1430 mm |
| Net Weight |
160 kg |
| Power Supply |
220Vac, 50Hz, 2-phase 3-wire, Power: 2.5 kW |
| Air Source |
Pressure ≥0.5 MPa, Capacity ≥10 L |
＞＞＞Features
1.Adopting dual‑station integrated design for sheet‑forming and pressing. Handsheets can be pressed directly on the machine without sample transfer for high working efficiency.

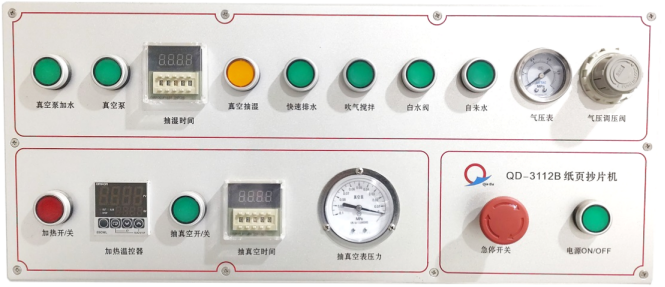

2.Equipped with independent electric‑control console. Pressure gauge and multi‑function buttons are centrally arranged for clear parameter display and easy operation.
3.Fitted with moving casters for convenient relocation in laboratory. Closed cabinet structure keeps neat appearance and simplifies maintenance.
4.Suitable for papermaking research institutes and mill laboratories to evaluate pulp performance and verify beating process, complying with relevant test standards.

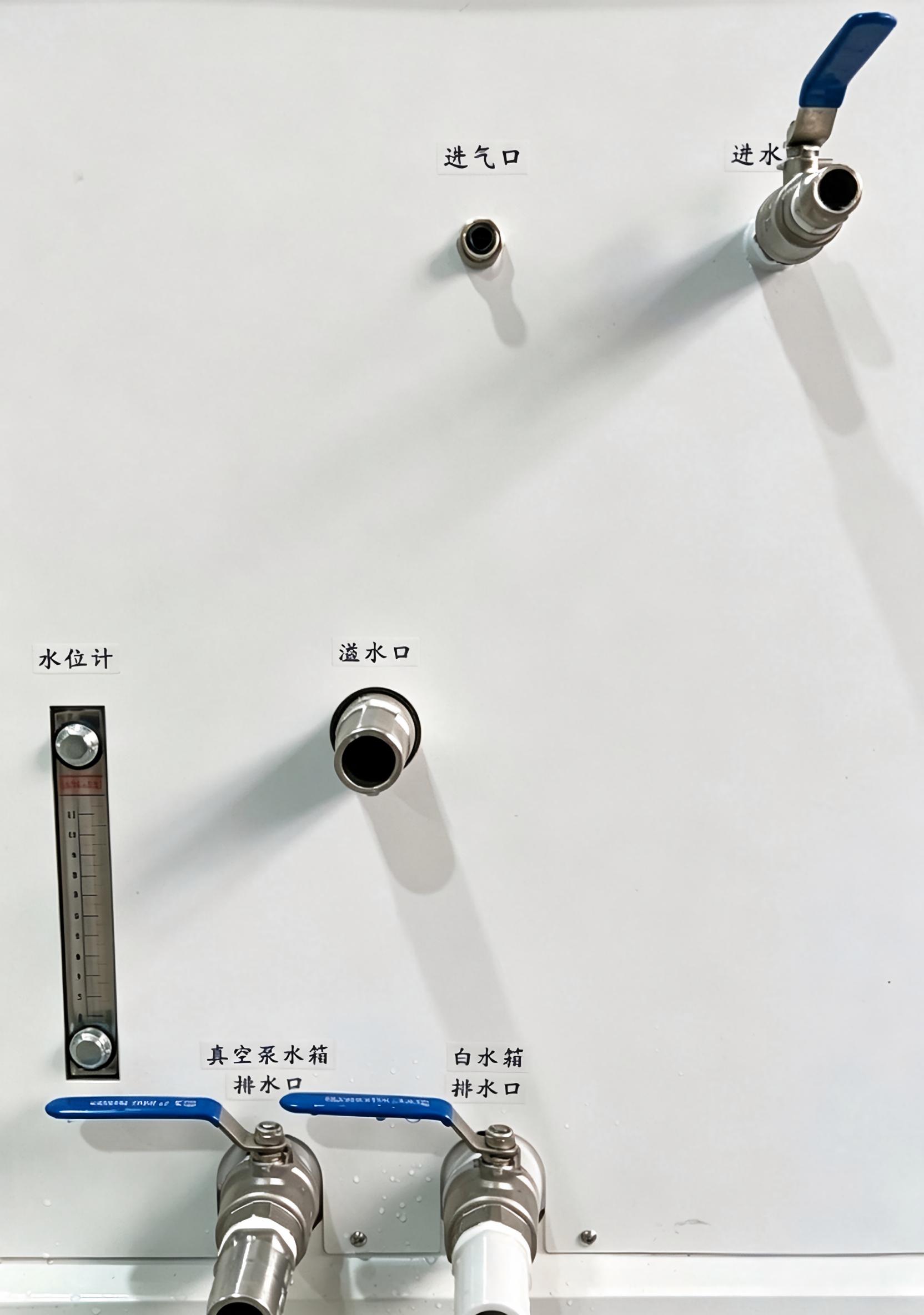

＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
