Automatic Printing Ink Proofer / Ink proof tester
＞＞＞Introduction
About product
YQD-3033 ink proofing machine completely imitates the working principle of the printing machine, the pressure is adjustable, the printing substrate is wide, suitable for printing, packaging and ink enterprises. It accurately predicts the ink hue, and it can be used once in 2 minutes. The cleaning is also very convenient and saves. Waste of paper, ink, and water and electricity brought about by the color development of the printing press. At the same time, the printing machine is prevented from taking too much time due to coloring, which effectively improves the production efficiency of the printing machine.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

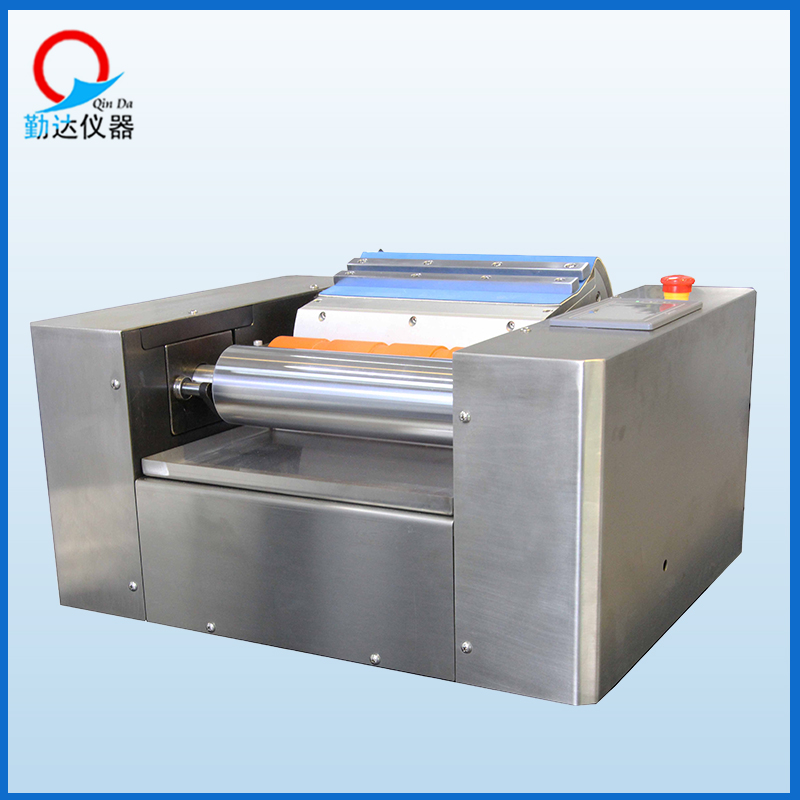

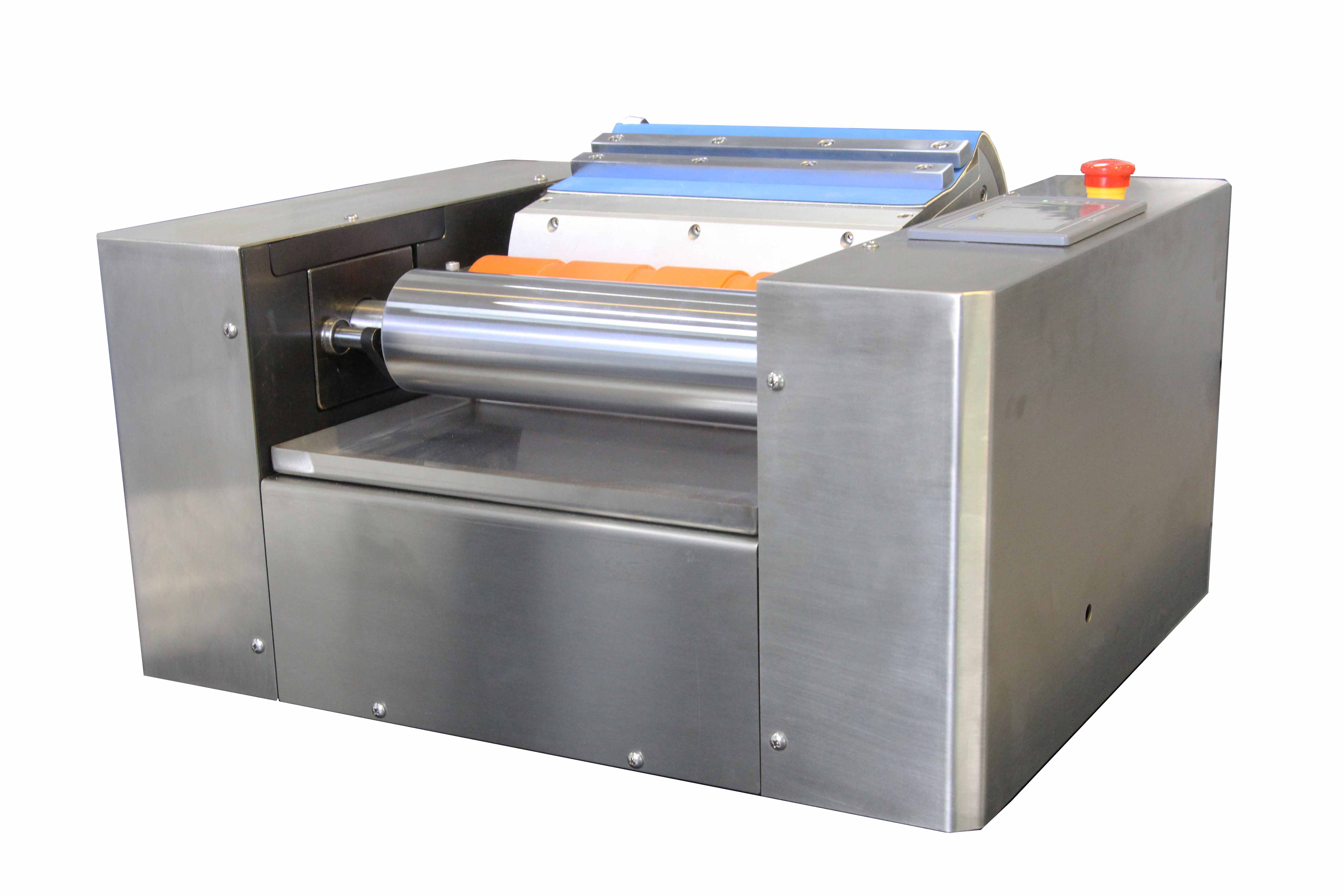

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Parameter Item |
Specification |
| Ink Distribution Mode |
Automatic ink distribution (ink distribution time adjustable) |
| Printing Pressure |
Precisely adjustable according to substrate thickness |
| Ink Distribution & Printing Speed |
Adjustable via gears based on ink and paper properties |
| Printing Roller Width |
225 mm (Max color drawdown area: 225 mm × 210 mm) |
| Effective Color Strip Area |
45 mm × 210 mm |
| Rubber Roller |
Ø67 × 229 mm (Max color drawdown area: 229 mm × 210 mm) |
| Optional Configuration |
Standard type or UV type |
| Overall Dimension (W×D×H) |
530 × 430 × 300 mm |
| Net Weight |
Approx. 75 kg |
| Power Supply |
AC220V, 50Hz, 3A |
| Working Environment Temperature |
(20±10)°C |
| Working Environment Humidity |
＜85%RH |
＞＞＞Features
1.Ink distribution speed can be switched between automatic and manual modes to accommodate different operating habits and special working conditions.
2.The traversing function supports centered stationary soft-start mode, which reduces uneven color drawdown and ink splashing, and improves color matching accuracy.
3.Fourstage timing setting for ink distribution (0–200 seconds for each stage). Multiple ink distribution modes are configurable: centered stationary traversing, intermittent contact, fixed contact and automatic variable speed for higher precision and better user-friendliness.
4.Automatic ink distribution pressure: automatically adjusted to compensate for rubber roller wear or dimensional differences between new and used rollers.
5.Automatic color drawdown pressure: automatically adjusted according to substrate thickness within the range of -1 ~ +1 mm for enhanced accuracy and convenience.
6.Color drawdown effect: Equipped with a 10 mm secondary light-color comparison zone, enabling accurate visual differentiation between two ink samples.
7.Cleaning: Automatic cleaning with powered rubber rollers. Simply apply a small amount of cleaning solvent; ink dissolves while rollers rotate. Wipe with rag to finish cleaning, saving cleaning materials and labor time during long-term operation.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2.Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5.Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
