Xenon Arc Aging Test Chamber / Xenon Lamp Weathering Test Chamber for Printing Ink & Printed Matter
＞＞＞Introduction
About product
Xenon Test Chamber simulates the full sunlight spectrum to reproduce damaging light waves existing under different environments, providing corresponding environmental simulation and accelerated testing for scientific research, product development, and quality control. The Xenon Arc Weathering Test Chamber can be used for the selection of new materials, modification of existing materials, or evaluation of durability changes after material composition alterations, effectively simulating the changes that materials undergo when exposed to sunlight under different environmental conditions.
By exposing material specimens to light and thermal radiation from a xenon arc lamp for aging tests, it evaluates the light resistance and weatherability of certain materials under high-temperature light sources. It is mainly used for automotive, coatings, rubber, plastics, pigments, adhesives, textiles, etc.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

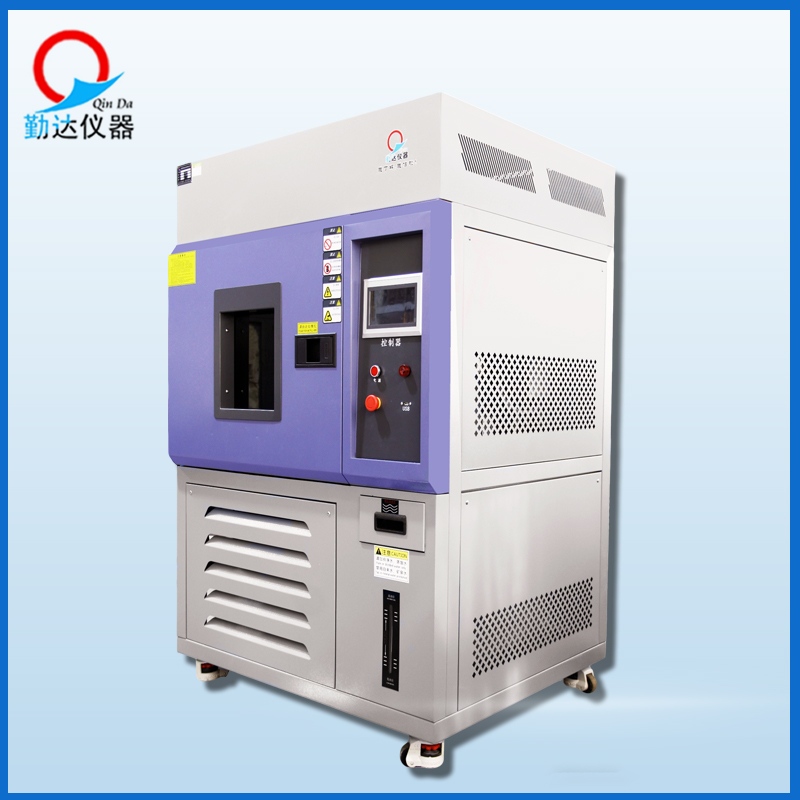

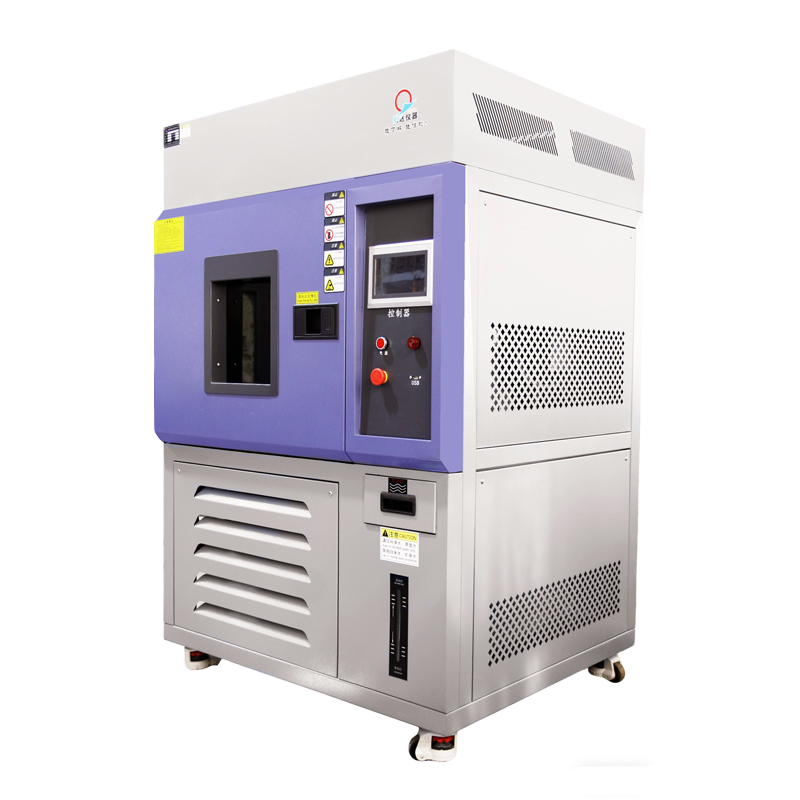

＞＞＞Product pictures
＞＞＞Standard
ISO-4892-1、ISO-4892-2、GB/T 1865-2009，GB/T16422 , 15422.1 AATCCM16, ASTM-D4459 ，GBT2423.24-2013
＞＞＞Parameters(we support customization parameters)
| Inner Chamber Size |
500×500×600 mm (W×D×H) |
| Outer Chamber Size |
Approx. 1050×9600×1800 mm (W×D×H), subject to actual dimension |
| Irradiance Adjustable Range |
160～1200 W/m² (full spectrum 280~800 nm)0.3～2.0 W/m² (420 nm band)0.35～0.8 W/m² (340 nm band)27–75 W/m² (300–400 nm band), as per customer’s wavelength requirement |
| Irradiance Meter |
One type as standard (optional):280~800 nm, 420 nm, 340 nm, 300–400 nm |
| Effective Exposure Area |
Approx. 2500 cm² |
| Number of Lamps |
2 pcs, 1.8 KW per lamp |
| Total Lamp Power |
3.6 KW |
| Lamp Life |
Approx. 1200 hours |
| Filter Type |
Special filter |
| Chamber Temperature Range |
RT+10℃～70℃ |
| Black Standard Temperature Range |
40℃～100℃ adjustable (light cycle); 25～85℃ (dark cycle) |
| Thermometer |
Black Standard Thermometer BST |
| Irradiance Control |
Intelligent automatic irradiance compensation |
| Temperature Accuracy |
±0.1℃ |
| Temperature Uniformity |
±0.5℃ |
| Humidity Range |
30%～98%RH (dark cycle); 20%～60%RH (light cycle) |
| Humidity Accuracy |
±1%RH |
| Humidity Uniformity |
±3%RH |
| Humidity Deviation |
≤±5%RH |
| Light Cycle Time |
Continuously adjustable: 1S～999H59M59S |
| Rain Cycle |
1～240 min interval (intermittent) rainfall adjustable |
| Spray Cycle |
18min/102min or 12min/48min (spray time / non-spray time) |
| Spray Water Pressure |
0.12～0.15 MPa |
| Spray Nozzle Diameter |
Φ0.8 mm |
| Door Seal |
Silicone rubber compression sealing device |
| Sample Rack Material |
SUS304 Stainless Steel |
| Inner Chamber Material |
SUS304 Stainless Steel |
| Outer Chamber Material |
Cold-rolled steel with baking paint |
| Humidity Range |
30%～98%RH (dark cycle); 20%～60%RH (light cycle) |
＞＞＞Features

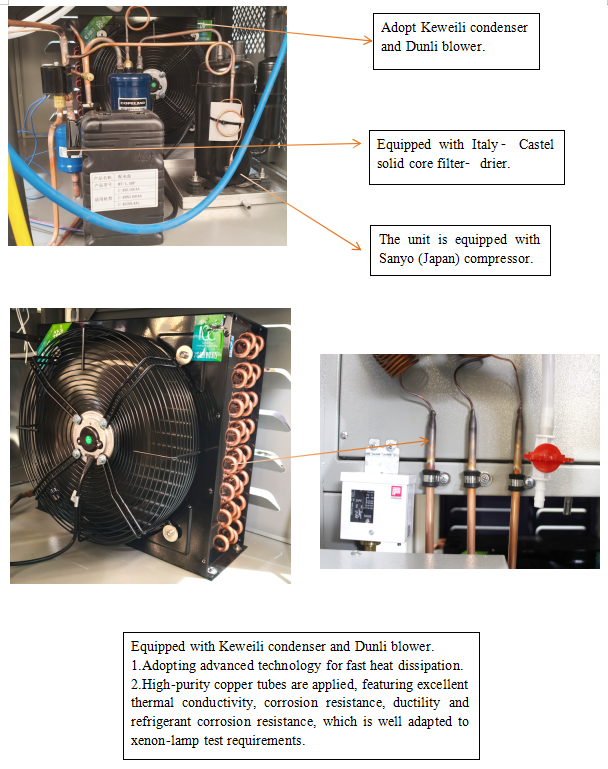

1. Ventilation Cooling Device: The test chamber temperature ventilation cooling system is automatically controlled by the temperature controller, with cooling achieved through the refrigeration system inside the chamber.
2. Black Panel Thermometer (BPT): A black standard thermometer (BST) is installed on the specimen rack. The black standard thermometer control adopts wired transmission technology, effectively improving control accuracy.
3. Sensor: Uses optical fiber transmission to measure the xenon lamp radiation intensity, avoiding measurement errors caused by temperature factors.
＞＞＞Control System

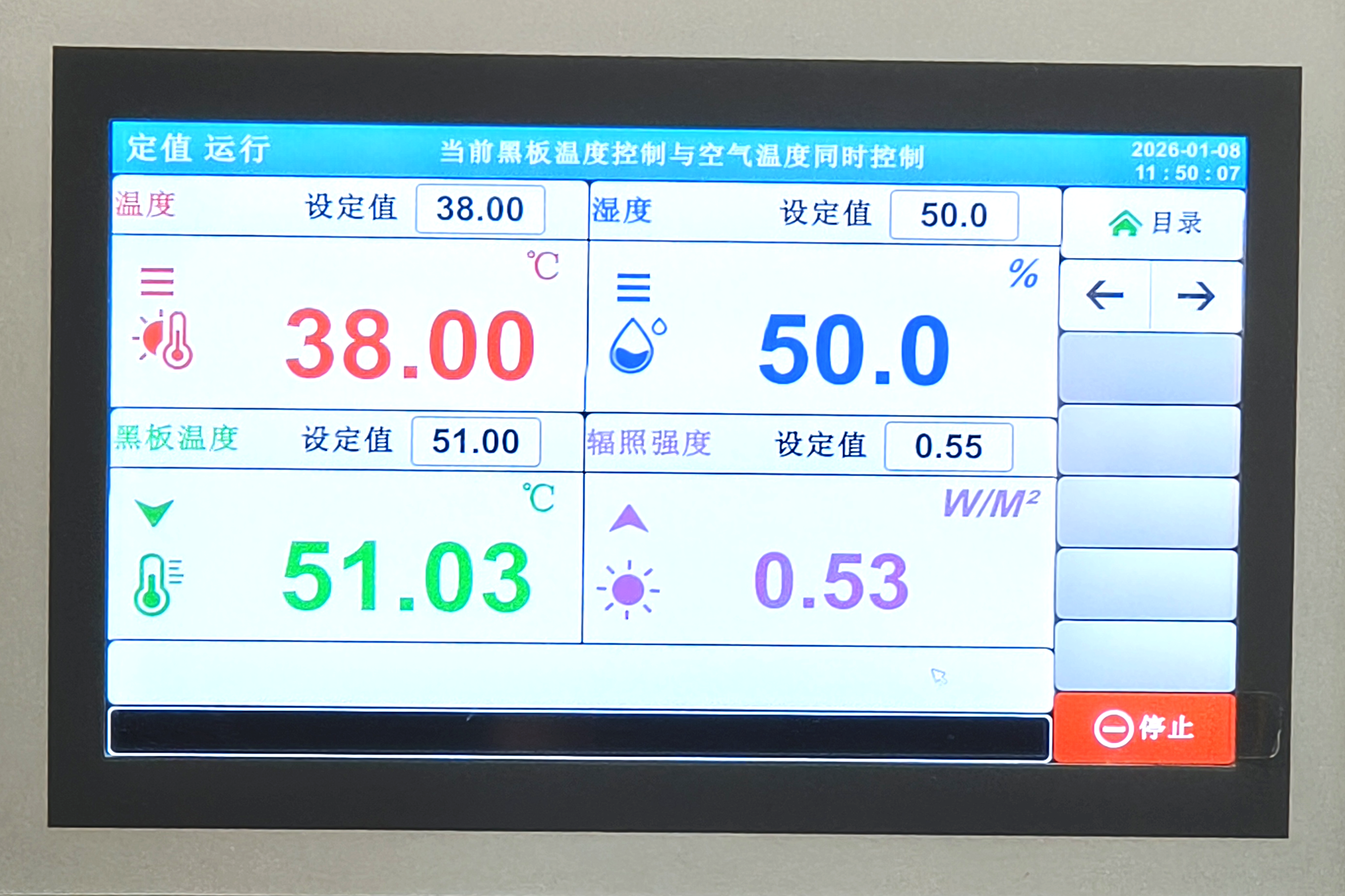

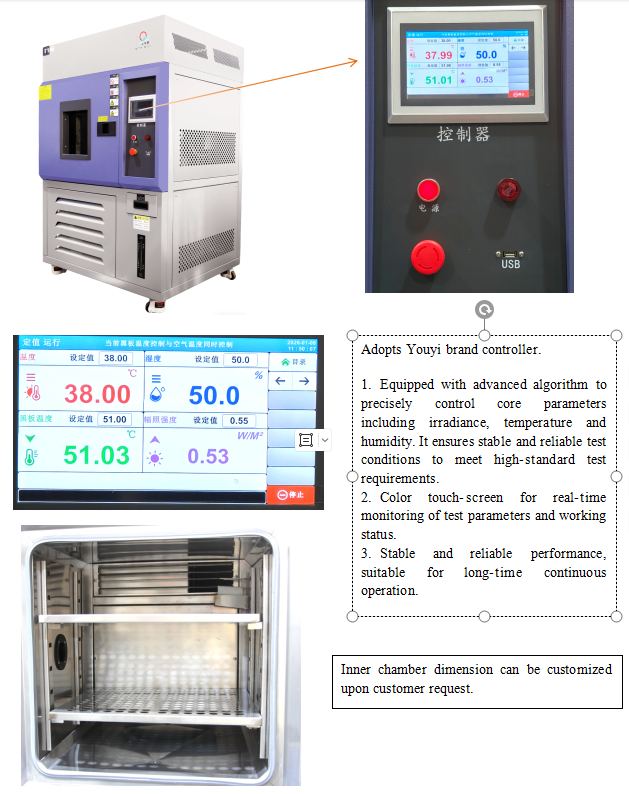

1.Controller: Programmable touch screen controller "Xenon Lamp Professional Controller";
2.Control System:
（1）Temperature control utilizes PLC programs and adaptive temperature control technology independently developed by the company;
（2）Blackbody temperature, ambient air temperature, irradiance intensity, water spraying duration, spray interruption time, cumulative data, irradiation energy, and test cycle count are all directly configurable and displayable;
（3）Microcomputer-based intelligent control automatically adjusts heating power and displays status after temperature setting, ensuring precise and stable temperature regulation. The system triggers over-temperature alarm and automatically cuts off power for SUS304 stainless steel powder spraying.
＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
