Waterpower pulp machine / Laboratory Hydrapulper
＞＞＞Introduction
About product
Model YQD‑3110 Hydrapulper is designed for disintegrating virgin pulp and recycled pulp under high‑consistency conditions. It serves as an effective tool for evaluating recycled‑pulp processes, chemical additives and pulp quality. The pulp tank and machine table are fully made of stainless steel. The motor adopts stepless speed regulation with digital speed display, and the pulping time is adjustable.
This is a high‑consistency hydrapulper dedicated for papermaking laboratories. For waste‑paper recycling, it is used for thorough disintegration of waste‑paper samples.
Working Principle:
After startup, the rotor rotates at high speed inside the tank and drives pulp to rotate. A baffle inside the tank obstructs pulp circulation, generating intense turbulent flow and strong friction. The paper stock is disintegrated in water, and fibers are fully separated from each other.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

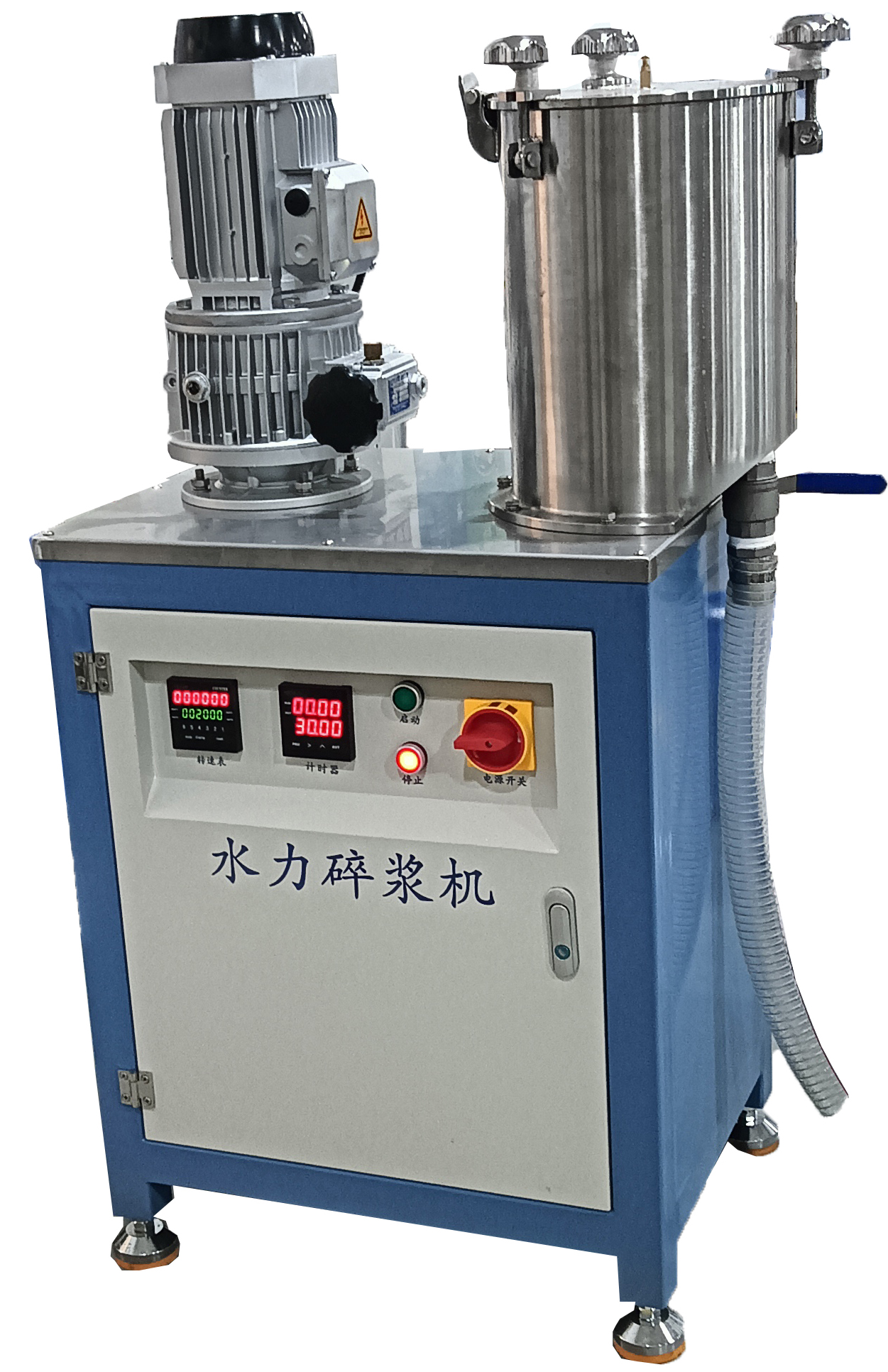

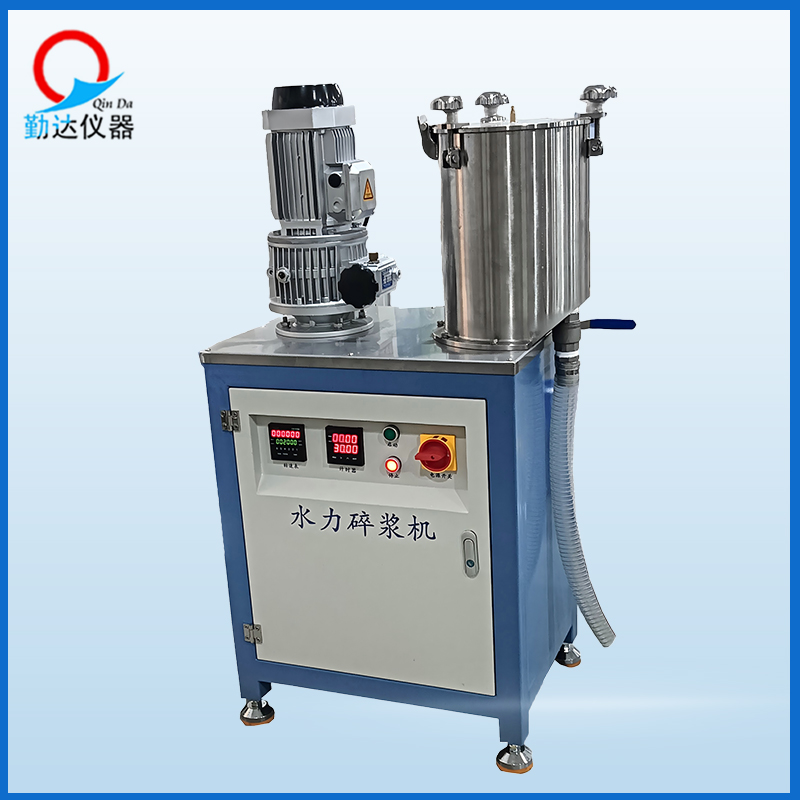

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Volume |
12L |
| Pulping Capacity |
450g Oven-dry pulp |
| Disintegration Consistency |
5%~35% (depends on pulp type) |
| Pulping Time |
5～30 min, ±0.1s, adjustable |
| Power Supply |
380V, 50Hz, 3 phase 5 wire system.
Reliable earthing is required
Total power: 2.0 kW
Motor: speed 200~600 rpm adjustable,
motor power 1.5 kW |
| Overall Dimension |
68 × 48 × 122 cm |
| Net Weight |
Approx. 80 kg |
＞＞＞Features
1.Touch screen LCD with curve display control system.
2.can switch between Chinese and English language control systems.
3.high-precision.
4.User-friendly menu interface.
5.Power protection ensure automatic record when power cut off.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
