Tissue paper ball burst tester
  • Tissue paper ball burst tester

Tissue paper ball burst tester

Item No.: QD-3061
INQUIRY
Tissue paper ball burst tester

>>>Introduction
About product

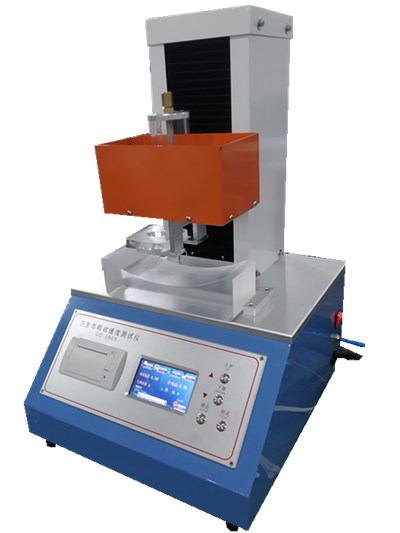

The QD-3061 spherical bursting tester (hereinafter referred to as the test machine) is the basic instrument for measuring the ball burst resistance of toilet paper and its products. The testing machine is mainly suitable for the determination of the spherical bursting resistance of various types of toilet paper and its products, and the determination of the puncture strength of various plastic composite films and bags for packaging. (Puncture test requires additional fixture)
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of  Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

>>>Product pictures


>>>Parameters(we support customization parameters)
Parameter item Technical indicator

Measuring range 1~100N
Indication accuracy indication error ±1%, indication variability ≤1%

Maximum displacement >100mm(without fixture)

Elongation measurement accuracy ±0.1mm
Standard test speed (125±5)mm/min
Test speed adjustment range (5.5350)mm/min
Test speed error (5~10)mm/min:±1mm/min
(10~180)mm/min:±5%
Clip spacing (test length) adjustable

Clamp spacing positioning error ±0.5mm
Moving chuck reset error ±0.1mm
Upper and lower chuck clamping ring inner diameter (89.0±0.2)mm/(50.0±0.2)mm
Clamp ring coating width ≥12.5mm
Test head diameter (16.0±0.05)mm
Dimensions 410mm×400mm×740mm
Weight 55kg

>>>Features
1.High-precision.
2.Easy to use.
3.Stable performance.

>>>Packing list
1 machine.

>>>Why choose us
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
