Sanitary Napkin / Panty‑liner Absorption Speed Tester
＞＞＞Introduction
About product
QD-3606C Microcomputer Sanitary Napkin Absorption Speed Tester (hereinafter referred to as the Instrument) is a basic device for testing the absorption speed of sanitary napkins. All its performance parameters and technical indicators comply with the provisions for absorption speed measurement specified in GB/T 8939-2025 Sanitary Napkins (Panty Liners). It can accurately measure the absorption speed and rewetting amount of sanitary napkins, serving as essential basic testing equipment for hygiene product laboratories.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

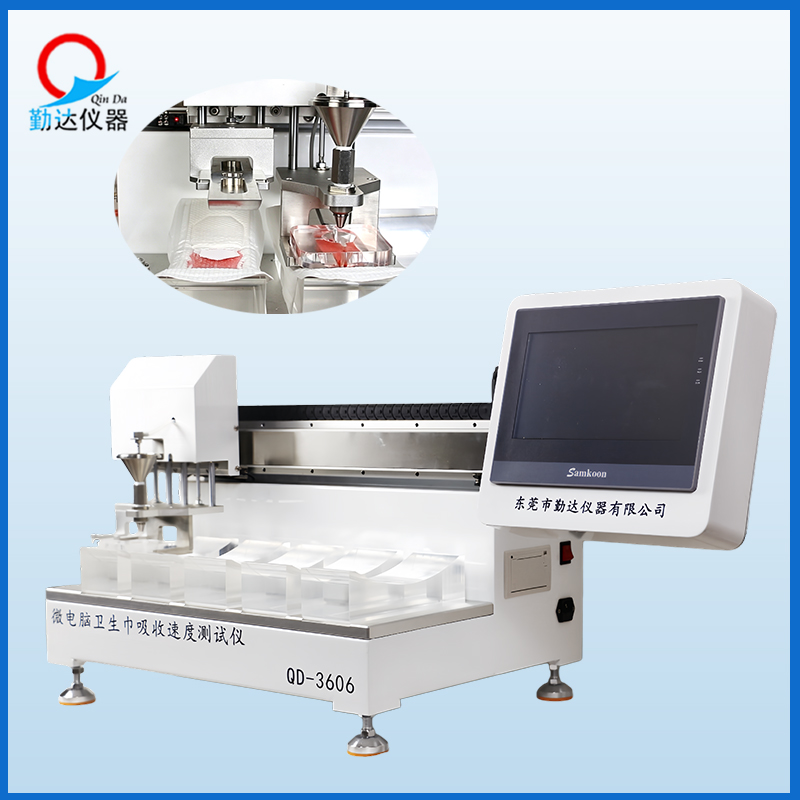

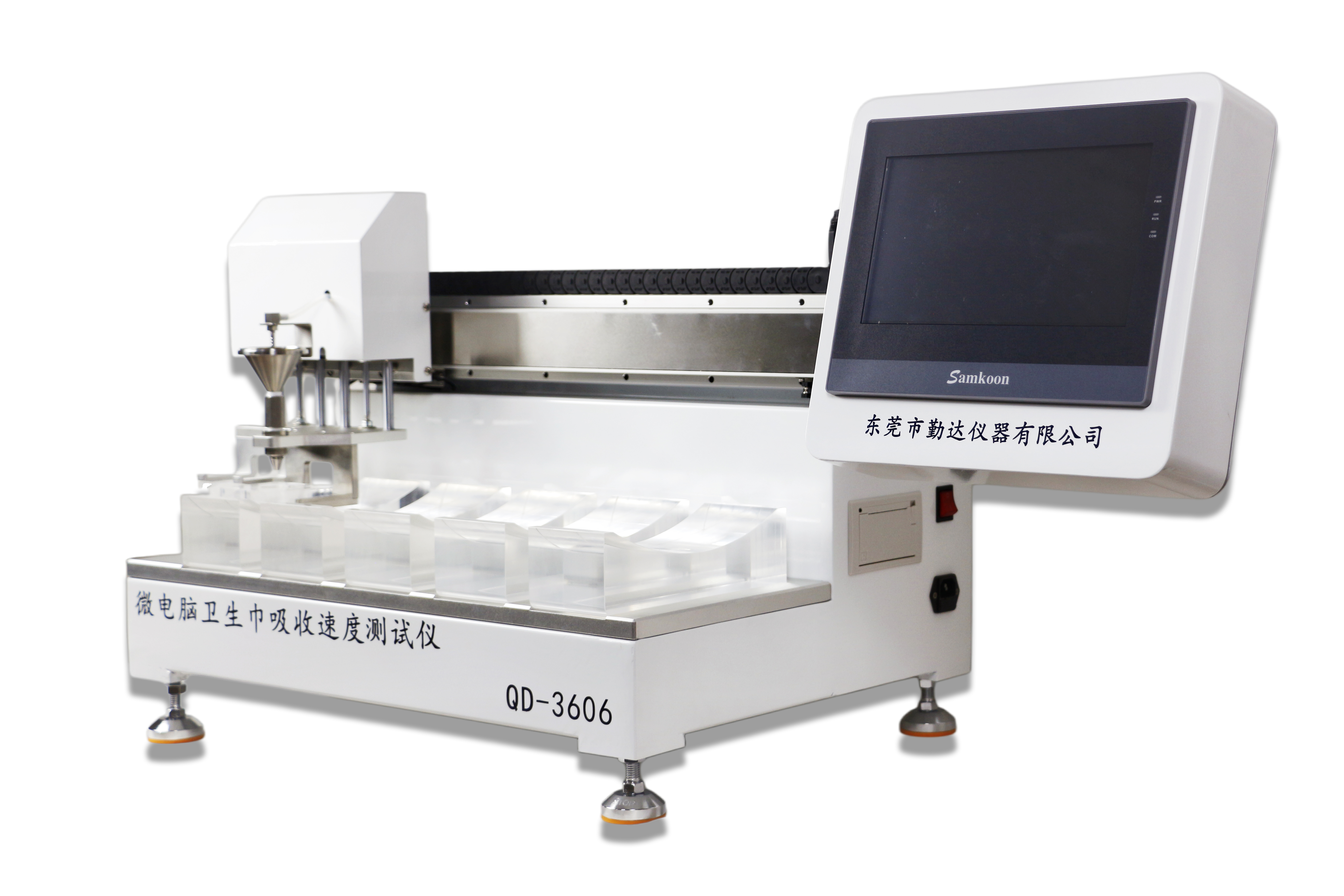

＞＞＞Product Picture
＞＞＞Parameters(we support customization parameters)
| Parameter Items |
Technical Indicators |
| QD-3606C Type |
| Timing Range |
（0-999）s |
| Resolution |
0.01s |
| Standard Test Module Mass |
(127±2.5)g |
| Standard Test Module Dimension |
Length x Width：(76±1)mm x (80±1)mm |
| Liquid Discharge Tank Gap Size |
Length (45.0±0.5)mm，Width (3.0±0.1)mm |
| Curved Specimen Holder Dimension |
(230±1)mm x (80±1)mm |
| Pressing Module Weight |
(1085±15)g |
| Pressing Module Dimension |
Length ＞207mm，Width (40.0±0.5)mm |
| Liquid Dosage |
(5.0±0.1)ml，Adjustable |
| Liquid Discharge Time |
≤3s |
| Test Stations |
5 Groups |
| Absorbent Paper |
Dimension (170±2)mm×(60±2)mm , Basis weight (150±10)g/m2，Water Absorption ≥480% |
| Air Source (User-supplied) |
≥0.6MPa |
| Overall Dimension (mm) |
1120*480*580mm |
| Net Weight |
60kg |
| Power Supply |
220Vac,50Hz,power：100W |

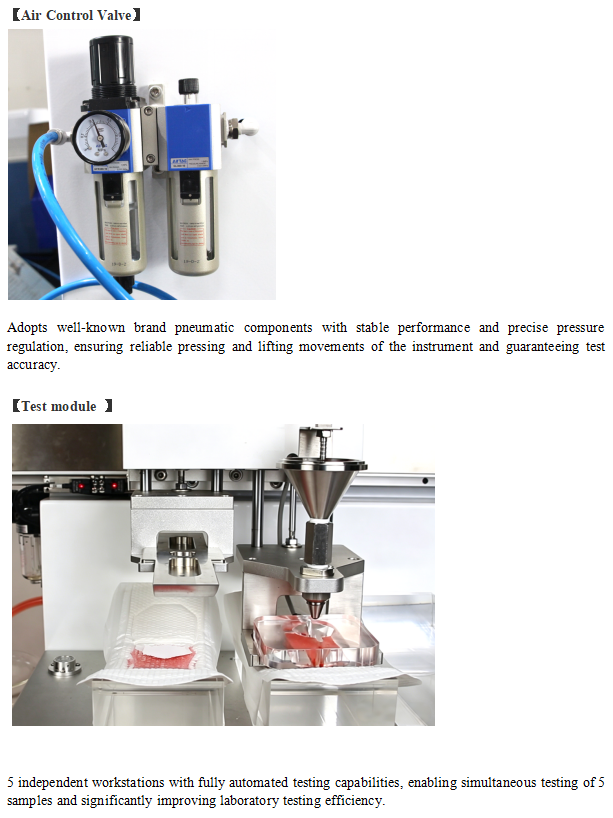

＞＞＞Details
＞＞＞Features
1.High-Efficiency Multi-Station Design, Doubles Testing Efficiency
Equipped with 5 testing stations. After pressing the test button, the instrument automatically tests the 1st and 2nd absorption speed and rewet of five samples in sequence, greatly improving batch testing efficiency. It is especially suitable for multi-batch comparison tests and significantly shortens the testing cycle.
2.Dual Test in One Machine (Absorption Speed + Rewet)One-time sample placement can automatically complete two absorption speed tests and one rewet test. No need to replace instruments or fixtures, saving time and labor.
3.High-Precision Liquid Adding SystemAccurate quantitative dosing with no dripping, ensuring consistent test results.
4.Fully Automatic Intelligent TestFull automatic process: sample placement → 1st absorption speed test → 2nd absorption speed test → rewet paper placement → rewet test → printing. Automatic liquid addition, timing and calculation improve efficiency and reduce human error.
5.Automatic Rewet CalculationThe machine can connect to an electronic balance. One-key input of the weight of rewet paper before and after the test, automatically calculates the rewet value without manual calculation.
6.Imported Core ComponentsStable operation, low failure rate, durable and easy to maintain.
7.Integrated Portable Printer Instantly obtain test data and reports.
8.Durable Body DesignThe body is treated with high-grade baking paint, elegant and durable, extending service life.
9.Modular Structure, Easy Operation & Maintenance
Independent test heads and adjustable leveling feet facilitate sample placement, observation, daily cleaning and maintenance. The touch screen interface is user-friendly and easy to operate.
10.3-Year Warranty + On-Site Training & Maintenance
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
