Pin adhesion test fixture
  • Pin adhesion test fixture

Pin adhesion test fixture

Item No.: QD-3012C
Pin adhesion test fixture
About product
Pin adhesion test fixture
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of  Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

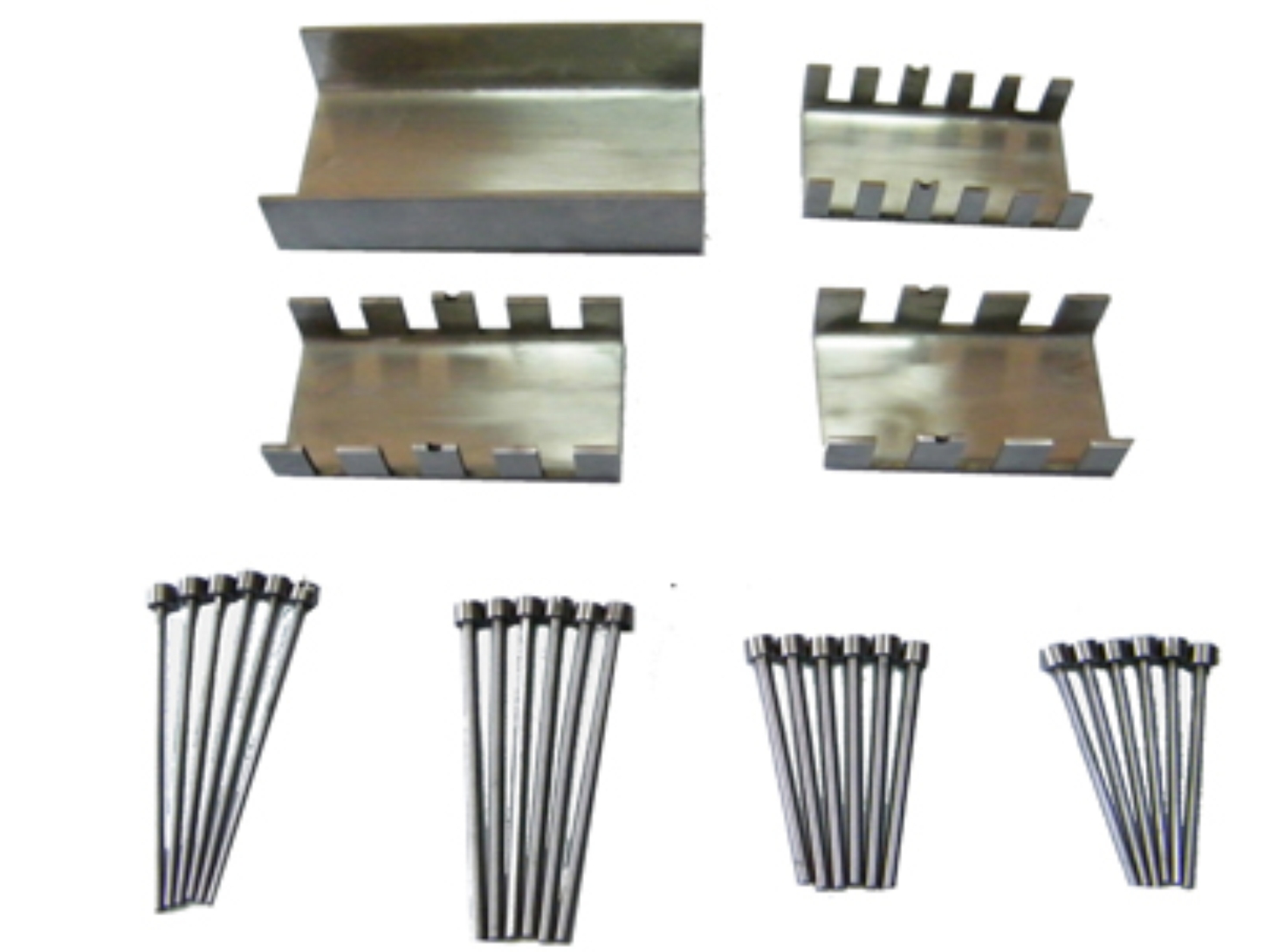

>>>Product pictures

>>>Parameters(we support customization parameters)
1.The bonding fixture specifications
Characteristics: This type of bonding fixture consists of the upper part of the pressure sub-frame and the lower part of the supporting mother frame and pins. The subracks are divided into A, B, C, E, etc., and each subrack is marked separately.
2.Corrugated Width
Corrugated Type Corrugated Width(mm)
A 8.0~9.5
C 6.8~7.9
B 5.5~6.5
E 3.0~3.5

3.Pin specification:
Item A C B E
Subrack pressure needle Quantity 4 4 6 6
Needle length (mm) 30±1
Needle diameter(mm) 3.5±0.1 3.0±0.1 2.0±0.1 1.0±0.1
Mother frame support  Quantity 5 5 7 7
Needle length(mm) 40±1
Needle diameter(mm) 3.5±0.1 3.0±0.1 2.0±0.1 1.0±0.1
1.Touch screen LCD with curve display control system.
2.can switch between Chinese and English language control systems.
4.User-friendly menu interface.
5.Power protection ensure automatic record when power cut off.
>>>Packing list
1 machine.
>>>Why choose us
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
