Paper and Cardboard Bekk Smoothness Tester
＞＞＞Introduction
About product
The QD-BK10 Microcomputer Smoothness Tester is a new type of instrument developed by our company in accordance with the provisions of the new national standards. Adopting advanced domestic electronic components, supporting parts and single-chip microcomputers, the instrument features rational structure and multi-functional design. It is capable of testing, converting, adjusting, displaying, storing and printing all parameters specified in the standards, and equipped with data processing functions to directly generate statistical results of various test data.
The instrument boasts a compact structure, small size, light weight, complete functions, easy adjustment, simple operation and stable performance.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

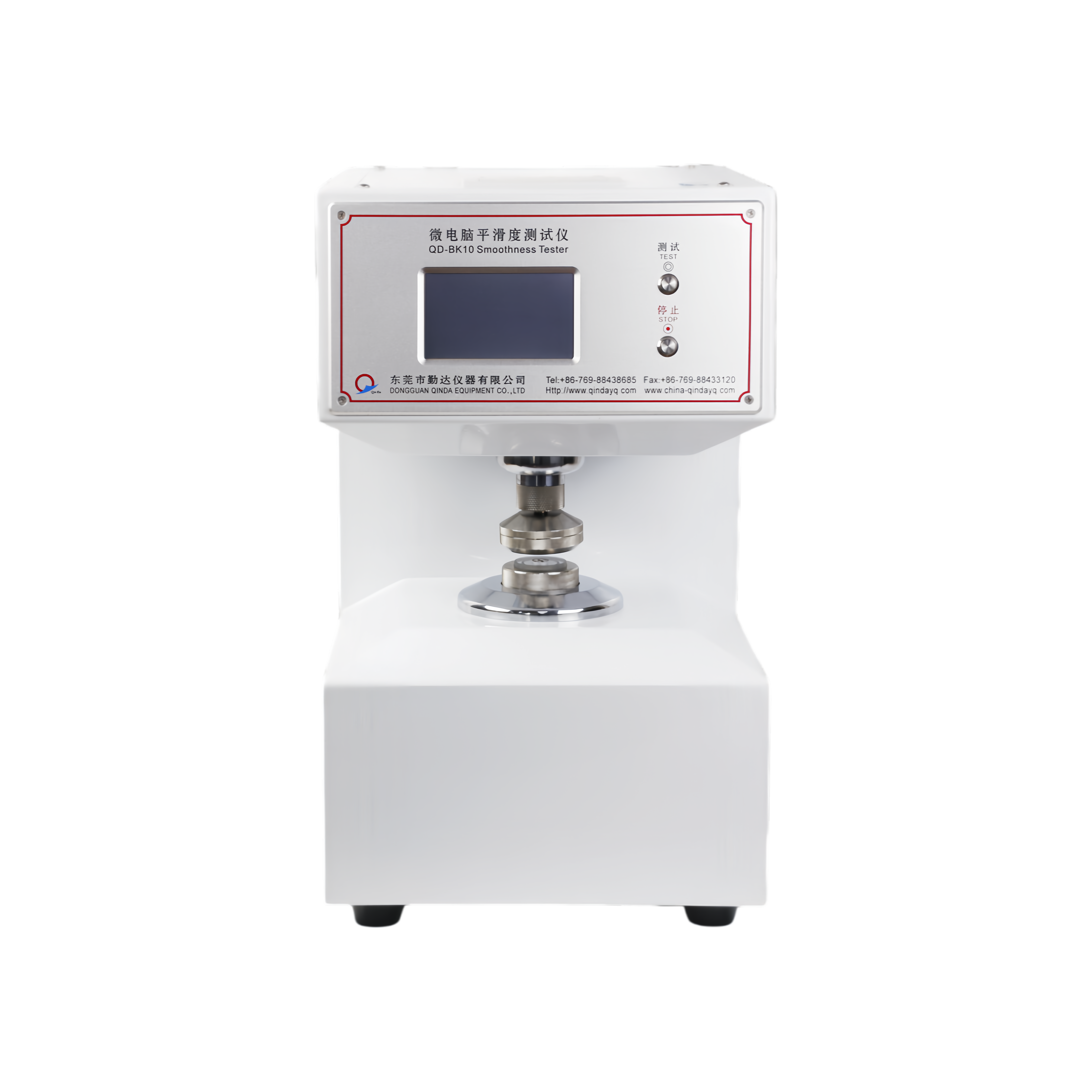

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Parameter Item |
Specification |
| Measurement Range |
Range I: (1–15) sRange II: (15–300) sRange III: (300–999999) s |
| Timing Accuracy |
(1–300) s: error ≤ ±0.1 s(300–999999) s: error ≤ ±1 s |
| Vacuum Container System Capacity |
Large vacuum container: (380±5) mlSmall vacuum container: (38±1.5) ml |
| Glass Plate & Contact Pressure |
Glass plate area: (10±0.5) cm²Contact pressure: (100±2) kPa |
| Vacuum Range |
Level I: (50.66–29.33) kPa (end vacuum adjustable)Level II: (50.66–48.00) kPa (end vacuum adjustable)Level III: (50.66–48.00) kPa (end vacuum adjustable) |
| Air Leakage Volume |
Large-volume system: vacuum drops from 50.66 kPa to 48.00 kPa, air leakage (10.00±0.20) mlSmall-volume system: vacuum drops from 50.66 kPa to 48.00 kPa, air leakage (1.00±0.05) ml |
| Operation System |
Touchscreen bilingual operating system |
| Power Supply |
AC220±10V, 50Hz, 3A; Power consumption: 100W |
| Environmental Conditions |
Temperature: 15–45°C; Relative humidity ＜85% |
| Overall Dimensions |
Length × Width × Depth = 360×360×400 mm |
| Instrument Weight |
35 kg |
＞＞＞Features
1.Oil-free Vacuum Pump: Equipped with a German imported vacuum pump that operates without lubricating oil, ensuring the instrument is oil-free and pollution-free during use.
2.Preloading Time Selection: The instrument features an optional "60-second automatic preloading control" function; users can enable or disable this function as needed.
3.Rapid Measurement: A small-volume chamber is available for measurement, with a measuring time only one-tenth that of a large-volume chamber, greatly saving time and enabling fast testing.
4.Excellent Sealing Performance: Adopts imported vacuum sealant and advanced sealing technology, making the instrument’s sealing performance fully meet national standard requirements. Modular Integrated Printer: Easy to install and low in failure rate; both thermal printers and dot-matrix printers are optional.

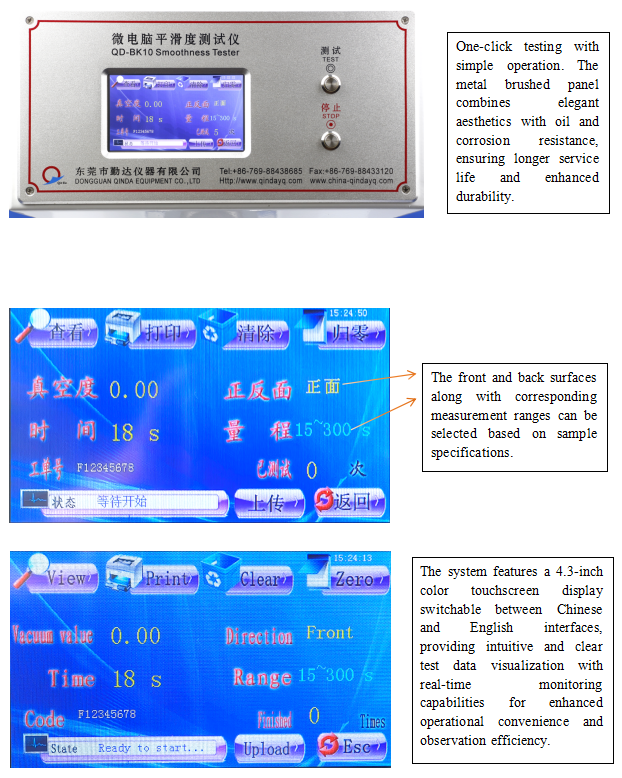

5.Operation & Display Interface: Supports free switching between Chinese and English. Equipped with a high-definition LCD color touchscreen display module with a conversational interface. No button input is required—functions can be select directly via the touchscreen. The user-friendly human-machine interface ensures simple operation.
6.Machine Structure & Appearance: Finished with high-grade baking paint, featuring an elegant appearance and long service life.

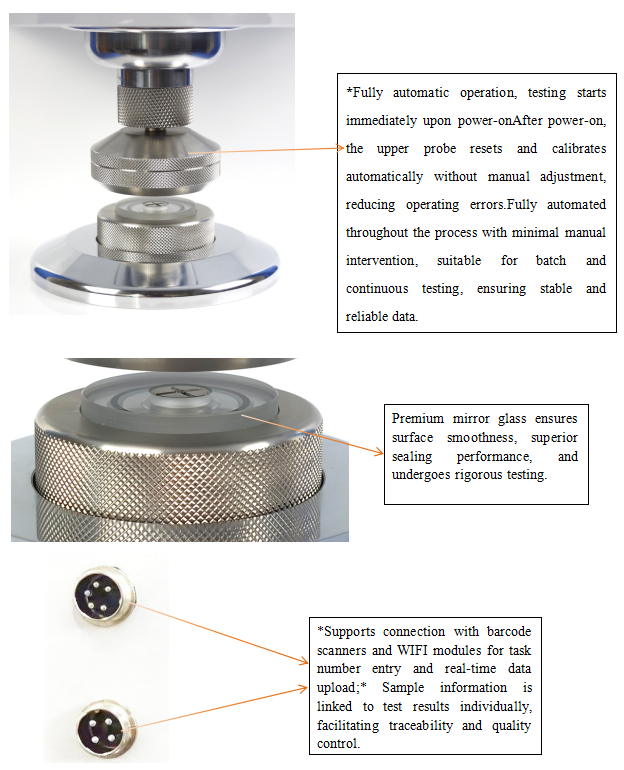

＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
