Plastic Film Thickness Testing Machine/ Film Thickness Tester
＞＞＞Introduction
About Product
Model QD-3019E Microcomputer Thickness Tester (hereinafter referred to as the Tester) is a special instrument for measuring the thickness of films and thin sheets. As an electromechanical integrated device, it adopts modern mechanical design concepts and ergonomic design principles. It is a high-precision computerized thickness tester featuring innovative design, easy operation, excellent performance and elegant appearance.
Equipped with a high-precision displacement sensor, the tester integrates functions including measurement, conversion, display, data storage, printing and data processing. Its main technical indicators and performance parameters comply with the requirements of GB/T 6672-2001 Plastic film and sheet — Determination of thickness — Mechanical scanning method. It is widely used to test the thickness of plastic films, thin sheets and other sheet-like materials.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

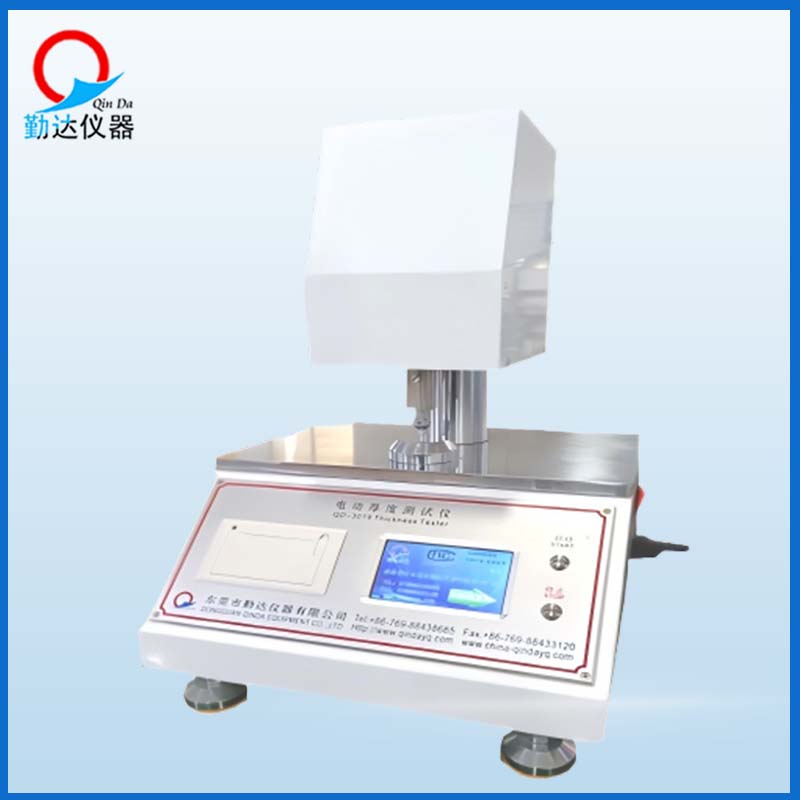

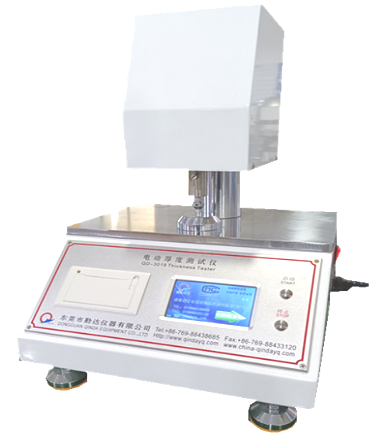

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Parameter Item |
Technical Specification |
| Measuring Range |
0～3 mm, Resolution: 0.0001 mm |
|
| Contact Pressure |
(17.5±1) kPa |
| Contact Area |
50 mm² |
| Parallelism of Measuring Surfaces |
＜5 μm |
| Measuring Speed |
0.5~10 mm/s, adjustable |
| Indication Error |
±0.001 mm or ±0.5% (whichever is larger) |
| Indication Variability |
≤0.001 mm or ≤0.5% (whichever is larger) |
| Data Storage Capacity |
50 groups of test data |
| Overall Dimension |
320×310×380 mm |
| Net Weight |
Approx. 27 kg |
| Power Supply |
220Vac,50Hz,120W |
＞＞＞Features
- Chinese/English system.
- High precision
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2.Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5.Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
