Corrugated Box Slip Angle Testing Machine / Packaging Carton Friction Angle Tester
＞＞＞Introduction
About product
QD-3081 Carton Sliding Angle Tester is specially developed by our company for brewery production conditions. It evaluates the influence of defective corrugated and fiber cartons on production-line efficiency and process loss, and verifies the adaptability of packaging materials during online operation. It measures the sliding friction angle of various cartons.
Also known as carton inclined-surface friction tester, it is mainly used to test the sliding friction performance of corrugated cartons and other packaging products. It is one of the essential carton testing equipment for beer and beverage manufacturers.
Main Purpose:
By testing the sliding property of packaging cartons, this instrument effectively solves problems such as carton slipping and sliding-off during production and transportation, ensuring the packaging meets practical application requirements.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

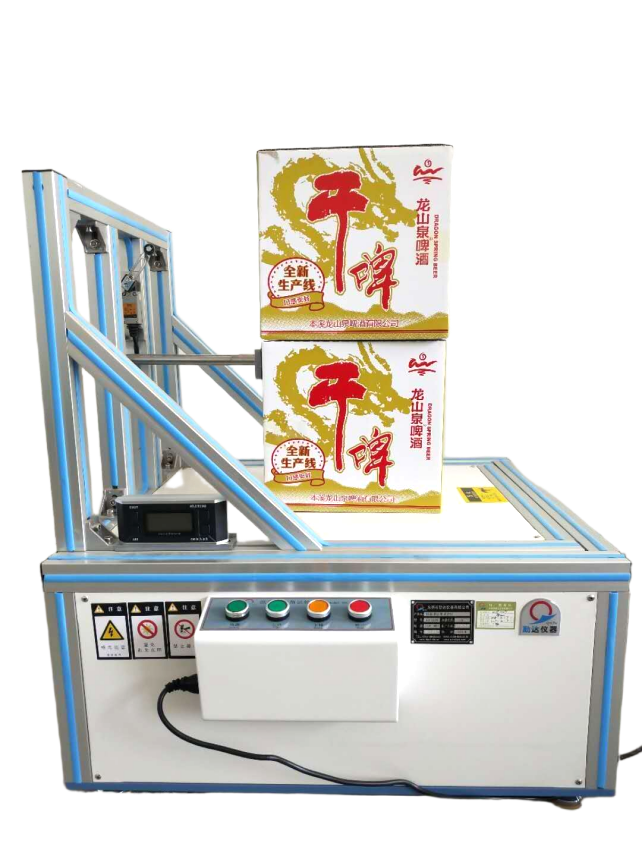

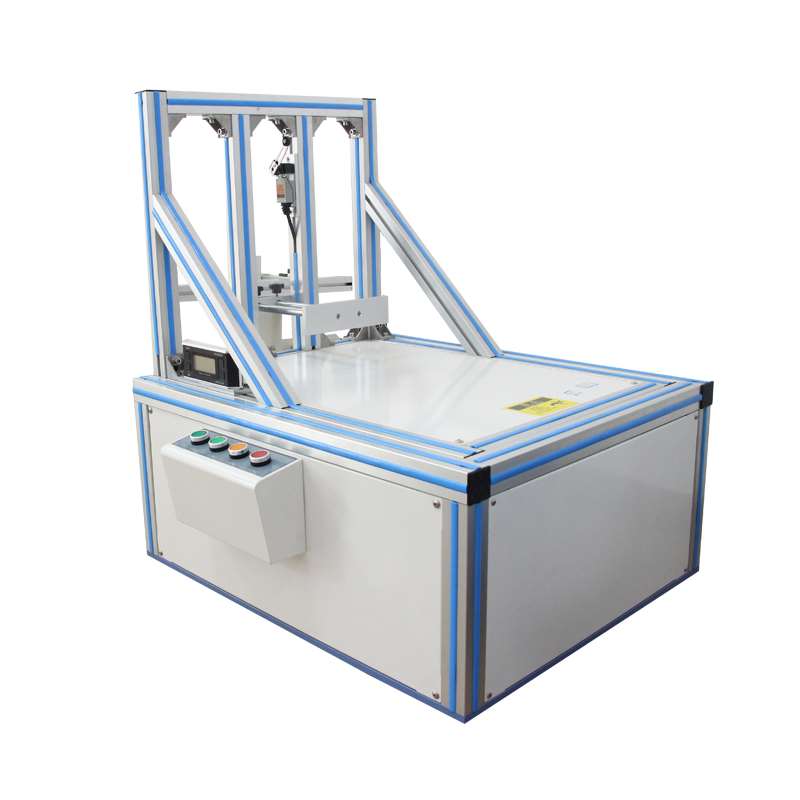

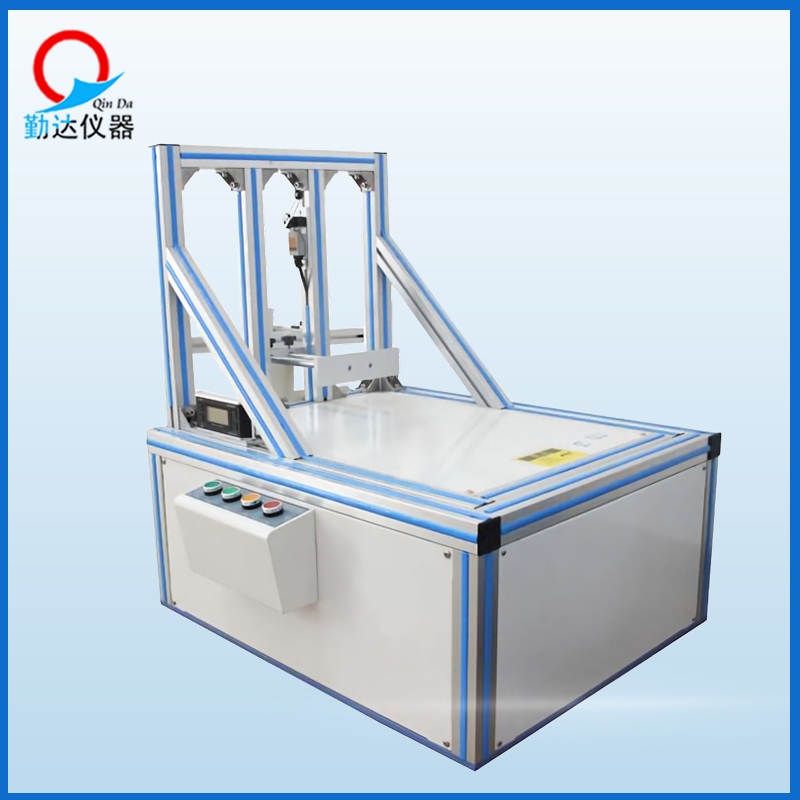

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Measuring Range |
0~35° |
| Resolution |
0.01° |
| Testing Speed |
1.5°/s |
| Indication Error |
±0.5%FS |
| Platform Size |
500×600mm |
| Maximum Load |
50kg |
| Machine Weight |
About 30kg |
| Power Supply |
220Vac, 50Hz, Power: approx. 200W |
＞＞＞Standards：
This instrument is developed in accordance with DIN 53119‑2‑1997 Testing of paper — Determination of friction — Part 2: Inclined‑plane method and other relevant standards
＞＞＞Features
‑ The instrument mainly consists of test platform, driving motor, digital angle indicator, braking device and control box.
‑ Adopts advanced single‑screw guide‑pillar mechanical structure with motor drive control and digital angle display for high control accuracy.
‑ Compact structure, complete functions, easy operation, stable performance and reliable safety protection.
1.Automatically inclined lifting platform with digital angle display, resolution up to 0.01°, accurately capture the critical sliding angle of cartons.
2.Controlled tilting speed at 1.5°/s for stable lifting, avoiding impact interference to test results and ensuring good repeatability.
3.Large‑size test platform, supports full‑size beer & beverage cartons, max load 50kg, available for stacked carton samples, simulating real brewery working conditions.
4.Designed according to DIN 53119‑2‑1997 inclined‑plane method, simulating slipping risk of stacked cartons to evaluate friction & slipping performance.
5.Simple push‑button operation. After sample placement, the platform tilts automatically. The angle value will be locked once carton slides down for direct data reading.
6.Widely used for corrugated & fiber cartons in beer and beverage industry. Predict slipping risk during conveying and stacking, reduce production loss.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
