Box Compression Tester Paper tube/Paperangle protectors Tester
＞＞＞Introduction
About product

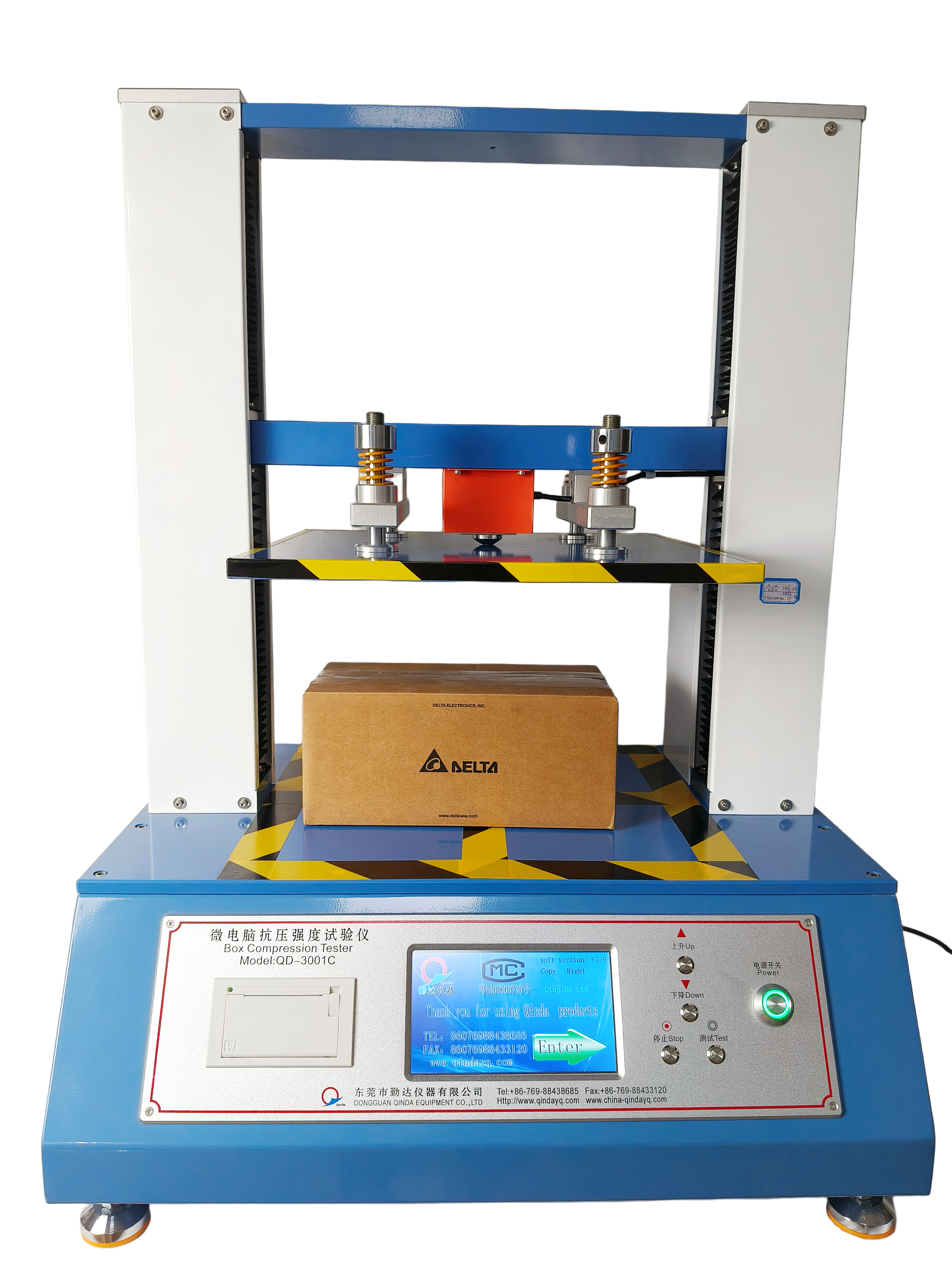

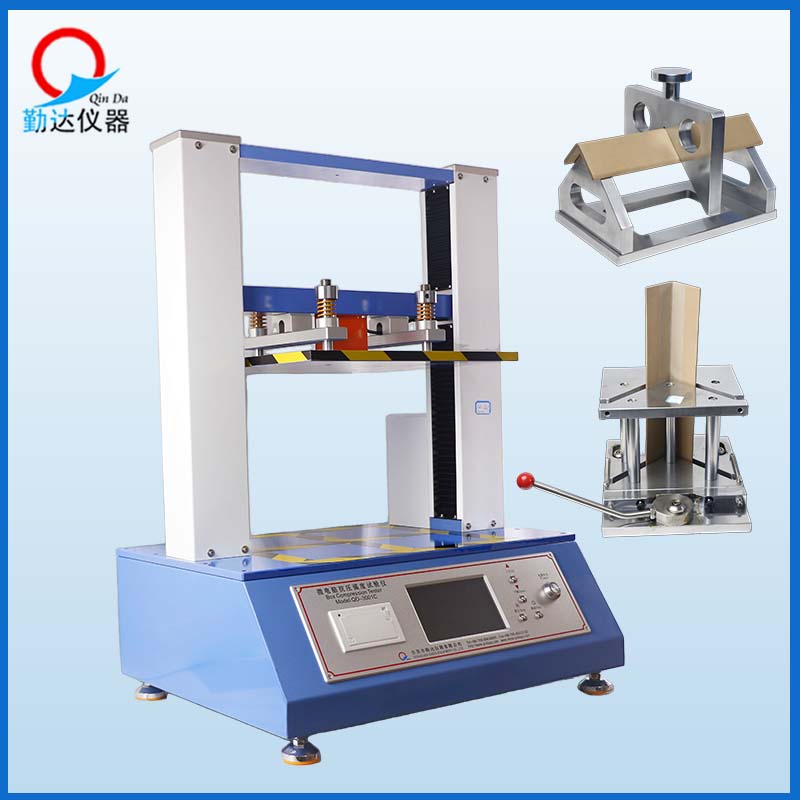

The QD-3001C Compression Testing Machine is a multi-functional equipment for compressive quality inspection of materials. It is mainly used for compressive and bending strength tests of cartons, plastic bottles, paper tubes, paper angle protectors and other products.
Featuring high control accuracy and advanced R&D technology, this instrument is a general-purpose compression testing machine with outstanding cost performance in China. It supports multiple test items, including compressive strength, stacking strength, compression and bending tests for paper tubes and paper angle protectors, as well as fixed-distance & fixed-force testing.
It is equipped with a data processing function to directly generate statistical results of all test data. Optional dedicated programmable control software is available for connection with a computer to realize PC control. Additionally, it comes with automatic reset and fault diagnosis functions, ensuring easy operation.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.
＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Specifications |
Technical Data |
| Force Measuring Range |
1T / 1000kg |
| Resolution |
1N |
| Force Measurement Accuracy |
Indication Error: ±1%Indication Variability: ≤1%Zero Return Error: ±0.1%FS |
| Deformation Measurement Accuracy |
±1mm |
| Test Space (L×W×H) |
0.4m × 0.4m × 0.4m |
| Speed Adjustment Range |
2mm/min～300mm/min |
| Display Mode |
High-definition color LCD touch screen, Chinese & English system switchable at any time |
| Standard Compression Speed |
10mm/min |
| Measuring Unit |
kgf, N, lbf (freely switchable) |
| Printing Function |
Force value, deformation, maximum value, mini mum value, average value, standard deviation, date and time |
| Parallelism of Upper and Lower Platen |
≤0.8mm |
| Protection Measures |
Limit protection, maximum force protection |
| Overall Dimension (L×W×H) |
660mm × 510mm × 920mm |
| Machine Weight |
Approx. 100kg |
| Power Supply & Power |
220Vac, 50Hz, 0.5kW |
＞＞＞Features

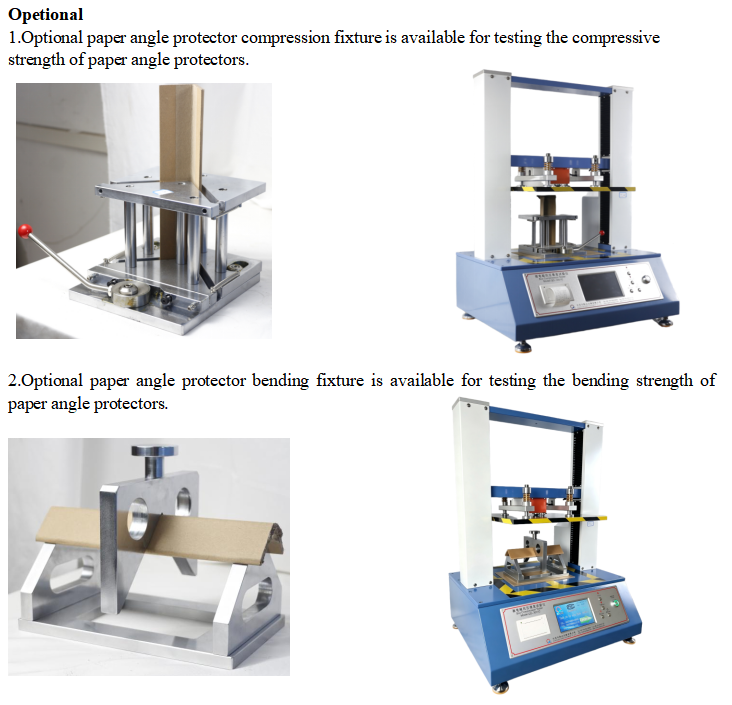

This instrument is a multifunctional main unit. Users can separately order corresponding accessories according to actual needs to perform various strength tests on base paper and corrugated board, as well as flat crush strength tests of paper tube cores. Adopting microcomputer control technology, it is equipped with statistical processing functions for test data and supports printout output.
1.Multifunctional Measurement

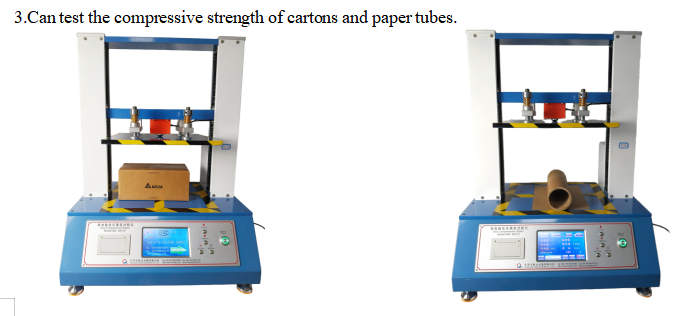

Equipped with a high-precision pressure sensor, the instrument can test the compressive strength and stacking strength of cartons, perform fixed-value testing, and also measure the flat crush strength of paper tube cores.
2.High-speed Return
Driven by an imported stepping motor, the pressure platen automatically returns to the starting position at high speed after measurement is completed, greatly improving working efficiency.
3.Thermal Micro Printer
Adopting a Japan-imported thermal printer core, no ribbon is required. It eliminates the trouble of replacing ribbons and refilling ink, greatly reducing failure rate and realizing high-speed and low-noise printing.
4.Operation & Display Interface
Fitted with a high-definition color LCD touch screen display module, it supports two display modes: digital display and curve display, which can be switched at any time. Adopting a dialogue-style interface with no physical buttons required, all operations are completed by direct screen touch. The user-friendly human-machine interface makes operation more humanized and straightforward.
5.Multiple Protection Functions
The instrument is designed with multiple protection mechanisms, including limit protection, over-range measurement protection, and motor stall & over-current protection, ensuring safer, more stable and reliable operation.
6.This microcomputer packaging container compression testing machine is the newly developed microcomputer-controlled model for packaging container compression testing.
7.The machine frame adopts aluminum extrusion panels with high-grade baking finish. It is built with a built-in high-precision, low-resistance, gap-free double ball screw and guide columns, which enhance load efficiency and structural rigidity.
8.The product features stable and reliable performance, high measurement accuracy, powerful test software functions, and simple and easy operation.
＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
