Tissue Paper/Toilet Paper Horizontal Tensile Strength Tester
＞＞＞Introduction
About product
The QD-3008B Microcomputer Horizontal Tensile Strength Tester is a fundamental instrument for testing the tensile strength properties of paper and paperboard. It is primarily suitable for determining the tensile strength, elongation, breaking length, and tensile energy absorption of paper, paperboard, and tissue paper. It can also be used for tensile performance testing of other sheet materials with low tensile strength and low elongation.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

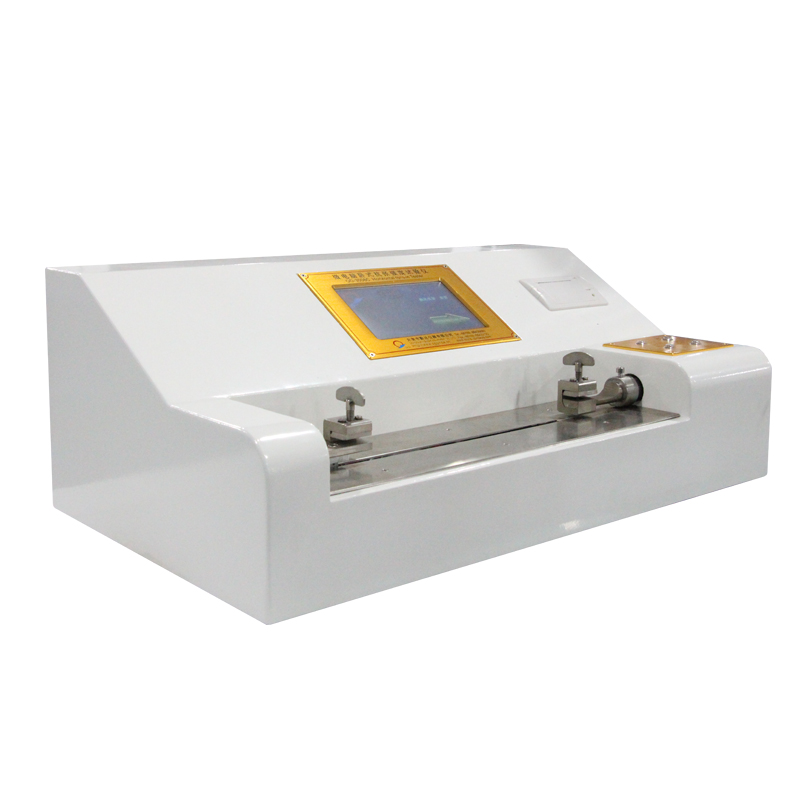

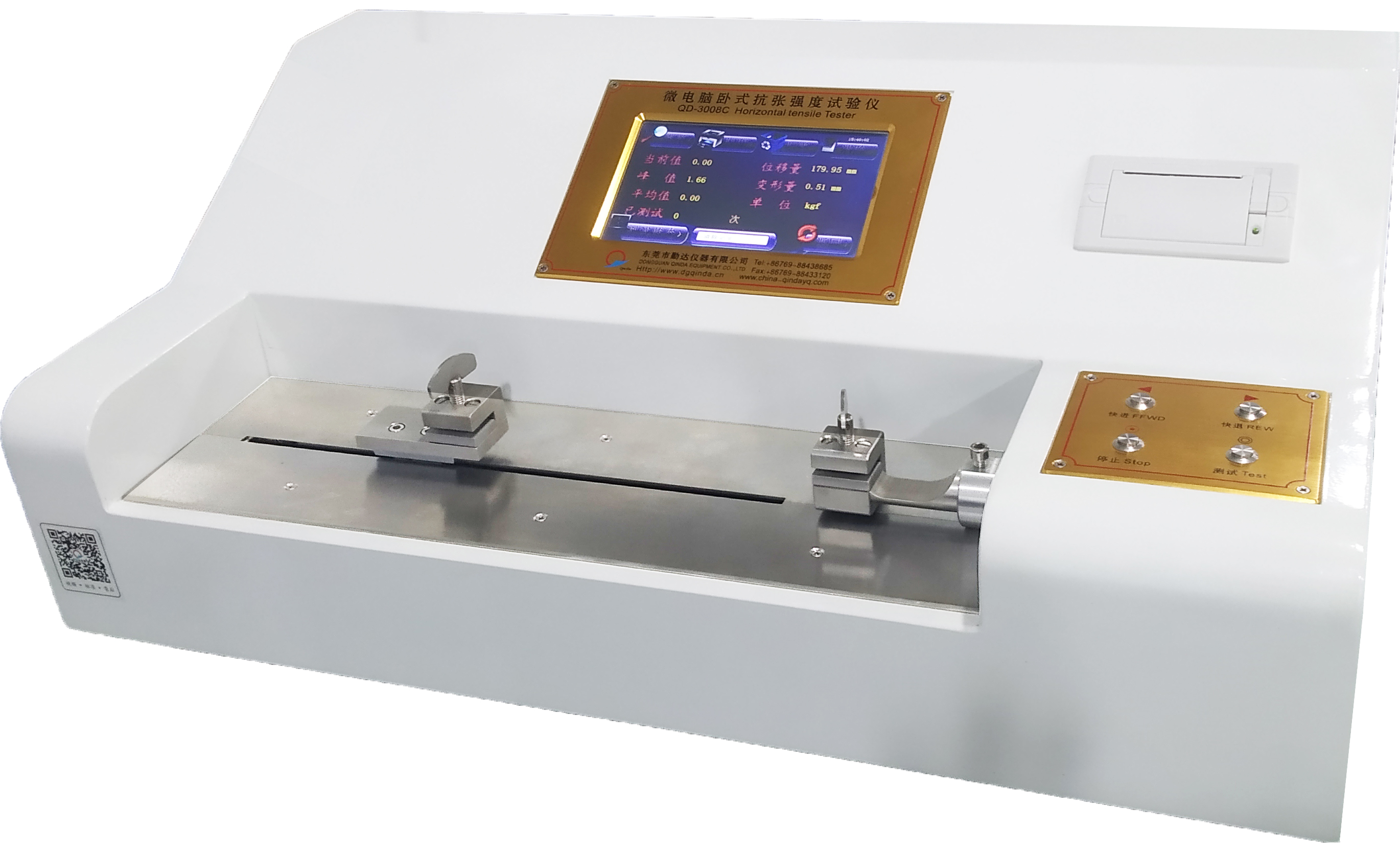

＞＞＞Product pictures
＞＞＞Standard
ISO 1924-2: Paper and board — Determination of tensile properties — Part 2: Constant rate of elongation method
GB/T 12914-2008: Paper and board — Determination of tensile strength
GB/T 24328.3-2020: Tissue paper and tissue products — Part 3: Determination of tensile strength, stretch at maximum force and tensile energy absorption
＞＞＞Parameters(we support customization parameters)
| Parameter Item |
Technical Specification |
| Measurement Range |
(0.1 ~ 100) N |
| Resolution |
0.001 N |
| Accuracy of Indicated Value |
Indicated error: ±1%Variation of indicated value: ≤1% |
| Elongation Measurement Range |
(0 ~ 260) mm (excluding fixtures) |
| Elongation Measurement Accuracy |
±0.1 mm |
| Test Speed |
Adjustable, (5 ~ 200) mm/min (optimal) |
| Test Speed Tolerance |
(5.5 ~ 10) mm/min: ±1 mm/min
(10 ~ 200) mm/min: ±5% |
| Initial Distance Between Grips (Reset Stroke) |
Adjustable, (3 ~ 200) mm |
| Grip Width |
≤22 mm |
| Initial Grip Distance Positioning Error |
±0.5 mm |
| Moving Grip Reset Error |
±0.1 mm |
| Protection Features |
Limit protection, maximum force value protection |
| Power Supply |
220V AC, 50 Hz, 200 W |
| Overall Dimensions |
700 mm × 400 mm × 280 mm |
| Net Weight |
Approx. 30 kg |
＞＞＞Features
1. Multi-Functional Measurement:The instrument employs a high-precision pressure sensor.
2. Thermal Micro Printing: Equipped with a thermal printer mechanism, eliminating the need for printer ribbons and the associated hassle of replacement or ink refilling. This design significantly reduces the failure rate and ensures high-speed, low-noise printing.
3. Operation & Display Interface:Features a high-definition, large-color LCD touch screen display module. The digital readout (which can be switched at any time) and the conversational interface (allowing direct screen touch for selection without button input) provide a user-friendly human-machine interface, making operation more simple.
4. Multiple Protections:The instrument incorporates multiple safety protections, including limit protection, measurement overload protection, and motor stall overcurrent protection, ensuring safer, more stable, and reliable operation.
5. Appearance & Structure:The machine features a sophisticated baked finish, making it aesthetically pleasing, durable, and long-lasting.
6. Reliability & Ease of Use:The product offers stable and reliable performance, high measurement accuracy, powerful testing software, and is simple and easy to operate.

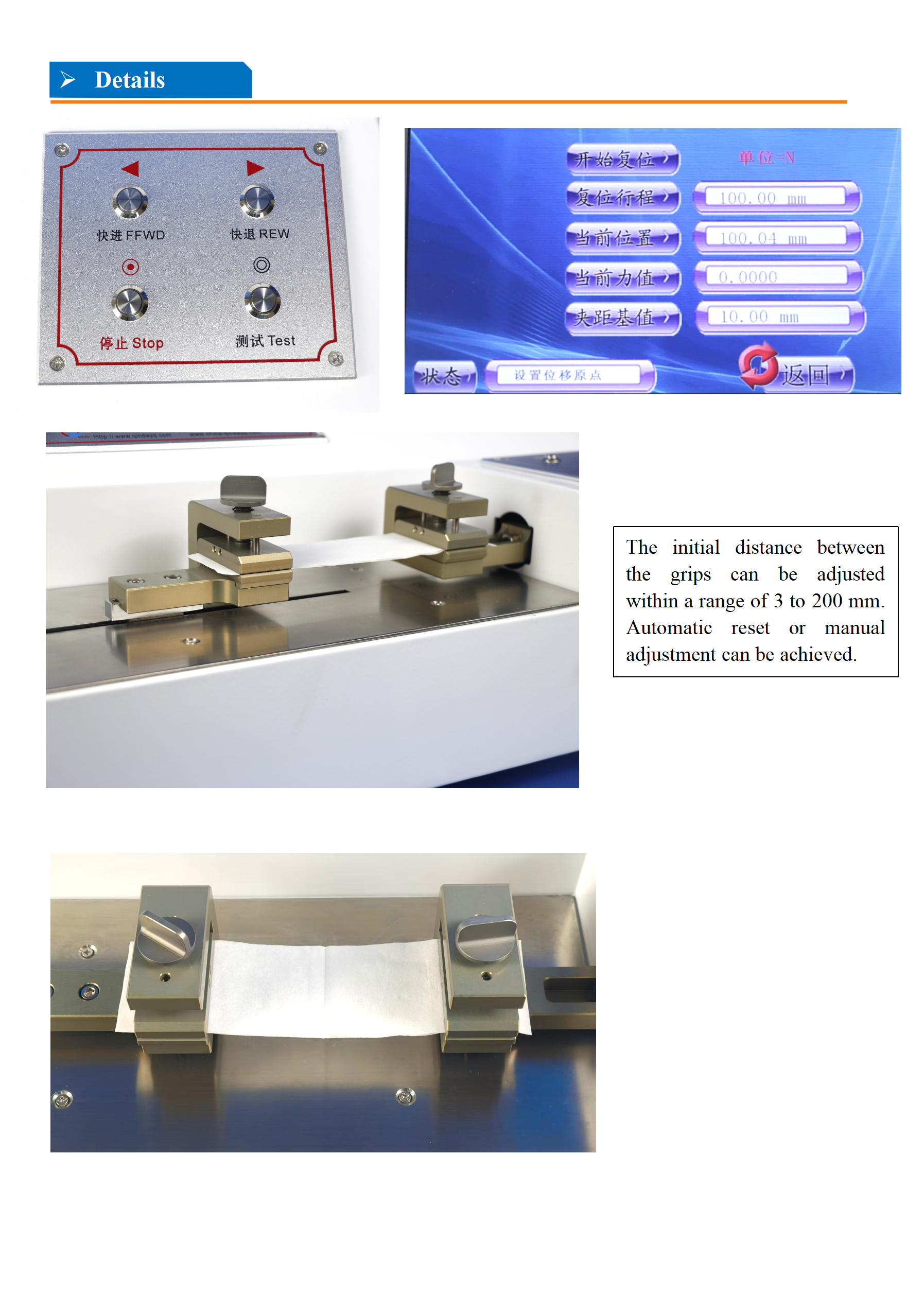

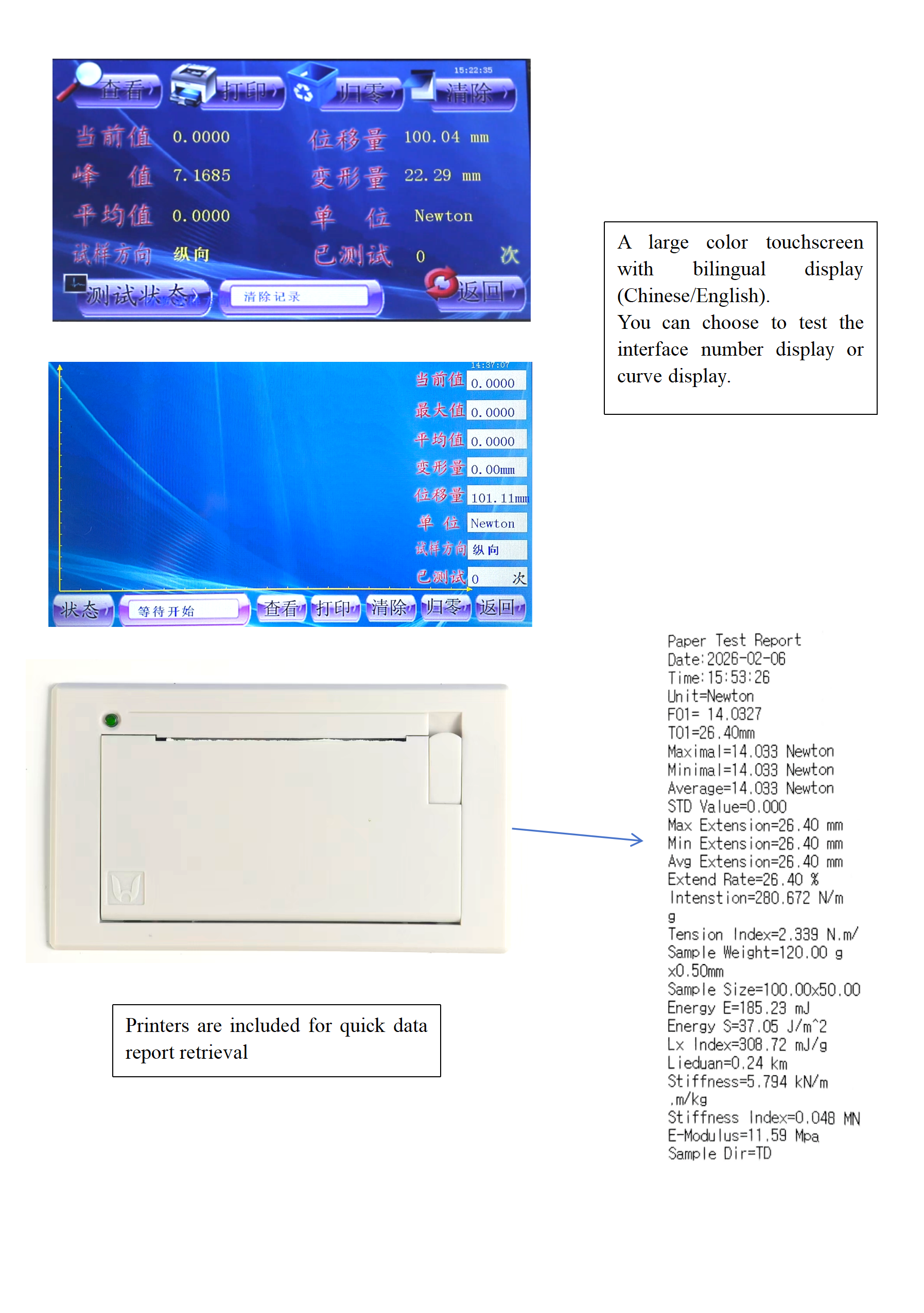

＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
