Color difference meter / Color analyzer
＞＞＞Introduction
About product

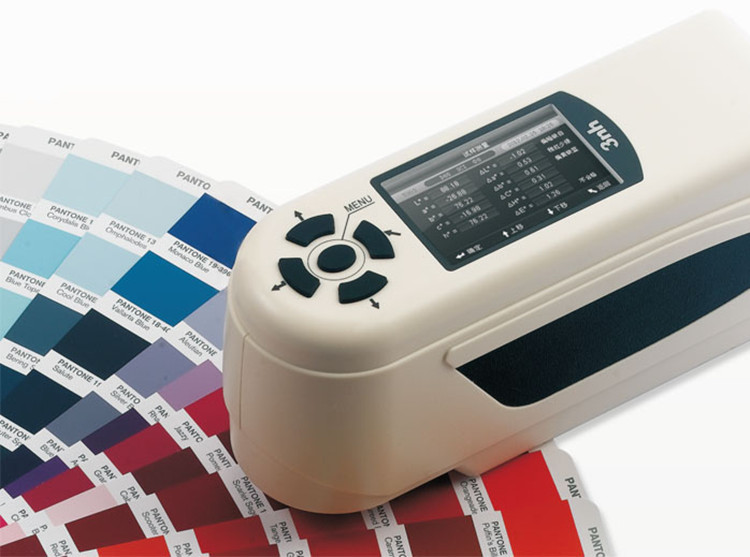

NR200 portable colorimeter delivers reliable color‑difference measurement for plastic, coating, ink, textile and powder samples. Patented light‑assisted positioning, multiple CIE color spaces, large data storage and USB data
export support daily quality control. Optional thermal printer and tube‑sample test accessories are offered.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

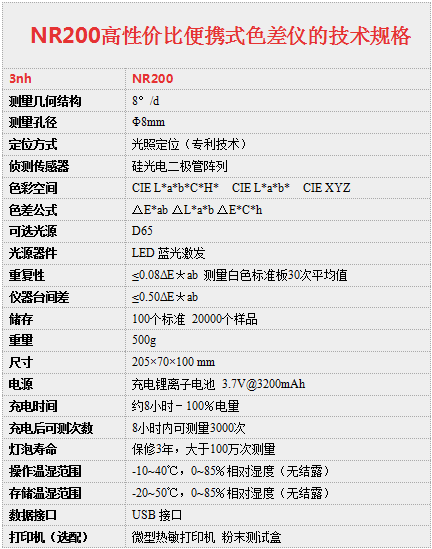

＞＞＞Parameters
| Item |
Specification |
| Measuring Geometry |
8°/d |
| Measuring Aperture |
Φ8mm |
| Positioning Method |
Light assisted Positioning (Patented Technology) |
| Detector Sensor |
Silicon Photodiode Array |
| Color Space |
CIE LabCH*, CIE Lab*, CIE XYZ |
| Color Difference Formula |
ΔEab, ΔLab, ΔEC*h |
| Selectable Illuminant |
D65 |
| Light Source Component |
Blue light Excited LED |
| Repeatability |
≤0.08ΔE*ab (Average value of 30 measurements on white standard plate) |
| Inter instrument Agreement |
≤0.50ΔE*ab |
| Storage Capacity |
100 standards, 20000 samples |
| Weight |
500g |
| Dimension |
205×70×100 mm |
| Power Supply |
Rechargeable Li ion Battery 3.7V@3200mAh |
| Charging Time |
Approx. 8 hours for full charge (100%) |
| Measuring Times after Full Charge |
3000 measurements within 8 hours |
| Lamp Service Life |
3 year warranty, over 1,000,000 measurements |
| Operating Temperature & Humidity |
-10~40℃, 0 85% RH (non condensing) |
| Storage Temperature & Humidity |
-20~50℃, 0 85% RH (non condensing) |
| Data Interface |
USB Port |
| Printer (Optional) |
Mini Thermal Printer, Powder Test Box |
＞＞＞Features
1. Ease of humanized design and operation
One-click access to test;
Ergonomic structure design;
Point-and-click interface.
2. Stable measurement performance
△ E is less than 0.08;
The portable structure design is more conducive to maintaining the stability of the fuselage when applied.
3. Convenient and fast positioning
The light positioning function is a fast and easy positioning function, a function desighed for 3nh.
4. PC-side software to achieve more function expansion
The PC software has intellectual property rights, and the product is equipped with a one-to-one corresponding genuine software serial number and password protection;
It can perform color difference analysis, color difference accumulation analysis, chromaticity index, color sample library management, and simulation object color.
5. Advanced power management design
A high-capacity lithium-ion battery is used in the color difference meter;
It can be automatically charged and used repeatedly to save costs, and it can measure more than 3000 times on a single charge to ensure the stability of long-term measurement.
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
