Sanitary Napkin / Panty‑liner Absorption Speed Tester
About product
This unit is designed to accelerate product deterioration. Equipped with a forced hot air circulation control system, the oven ensures uniform temperature distribution inside the chamber.
It simulates UV radiation from sunlight. Specimens are subjected to combined UV light irradiation and thermal effect inside the chamber. After a certain test period, the degree of yellowing or fading of specimens can be observed. The grey scale standard can be used for comparison to determine the yellowing grade. It reproduces color defects occurring from sunlight exposure during end use or container transportation.
Fitted with a 300 W UV bulb, the tester shortens experiment duration. It can be used for basic yellowing resistance test, and also serves as an aging tester and drying oven for multi purpose application.
Aging Mode This mode accelerates product deterioration. One day test at 70 °C is theoretically equivalent to 6 month exposure in natural atmosphere.
Yellowing Resistance Mode This mode simulates appearance change caused by solar UV radiation under natural environment. A 9 hour test at 50 °C is theoretically equivalent to 6 month exposure in natural atmosphere.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

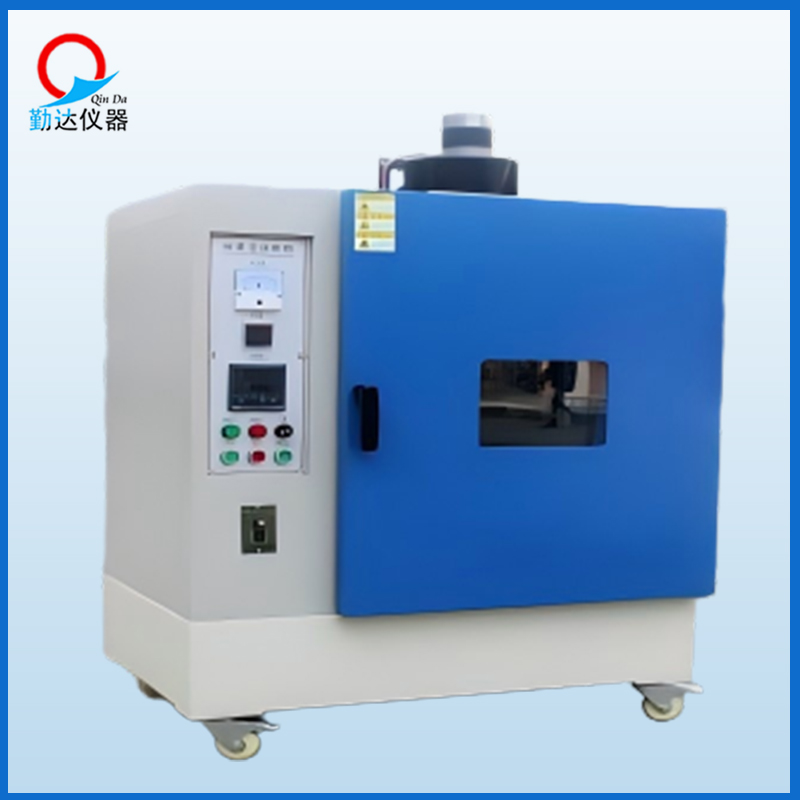

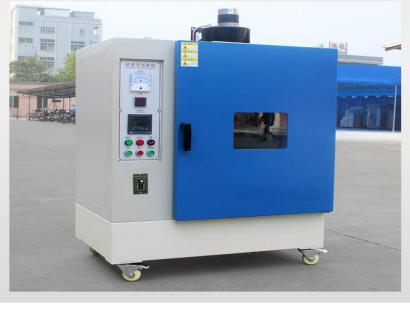

＞＞＞Product Picture
＞＞＞Parameters(we support customization parameters)
| Item |
Specification |
| Inner chamber dimension |
Approx. 50×60×50 cm (W×H×D) |
| Test lamp |
300W infrared bulb (original imported), 15W UV lamp |
| Heating method |
1 set forced hot air circulation unit |
| Specimen rotating turntable |
Φ45 cm, rotating speed 10±2 r/min |
| Temperature control |
PID |
| Temperature controller accuracy |
≤0.2℃ |
| Temperature range |
RT ~ 200℃ |
| Material |
Inner chamber: SUS304 stainless steel;Outer cabinet: high grade baking finish |
| Timer |
0.001S～999H, power failure memory, with buzzer alarm |
| Power supply |
AC220V |
| Protection device |
Non fuse overload protection, over temperature alarm protection |
| Machine weight |
Approx. 110 Kg |
＞＞＞Features
1.Compact precision structure with sensitive and accurate temperature control, easy‑to‑operate. Suitable for industrial & mining enterprises, universities and research institutes.
2.New‑generation model featuring flexible and precise temperature control with clear display.
3.Constructed of high‑quality steel plate and thin stainless‑steel sheet. A specimen supporting mesh is installed inside the working chamber. Glass‑fiber material is filled between working chamber and outer cabinet for thermal insulation. Digital display instrument provides automatic constant‑temperature regulation. All electrical control components are housed in the side control compartment of the cabinet. An observation window is fitted on the door for clear viewing of test progress. Adopting unique vertical assembled design for reasonable cabinet layout, small footprint and high space‑utilization efficiency.
