Microcomputer Box compression tester(BCT) Corrugated Box Tester

Item No.: QD-3001A/B

The QD-3001 series of cardboard box compression testing machines is a multifunctional standard quality inspection device for cardboard boxes. It is primarily used for compressive strength tests on various medium to large-sized corrugated cardboard boxes a

INQUIRY

PDF Format

Description

QD-3001A- 1Box compression tester (servo motor)

(7-inch Chinese and English touch screen + computer control dual system)

＞＞＞Introduction

About product
The QD-3001 series of cardboard box compression testing machines is a multifunctional standard quality inspection device for cardboard boxes. It is primarily used for compressive strength tests on various medium to large-sized corrugated cardboard boxes and for testing the overall compressive strength of packaging containers made from other materials, such as electronic packaging, furniture packaging, and food packaging. This instrument features high control accuracy and advanced technology, making it one of the most cost-effective general-purpose static compression testing machines available in China. It can perform tests on packaging compressive strength, stacking strength, and fixed-distance and fixed-force values. The machine has data processing capabilities, allowing direct statistical results to be obtained for all test items. It also includes automatic reset and fault diagnosis functions, ensuring convenient operation.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

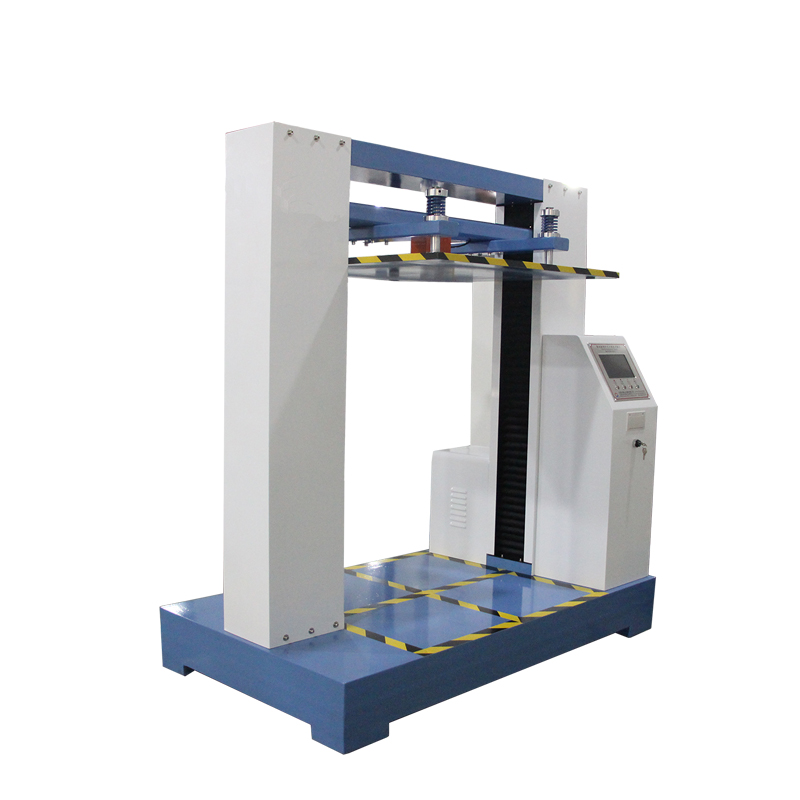

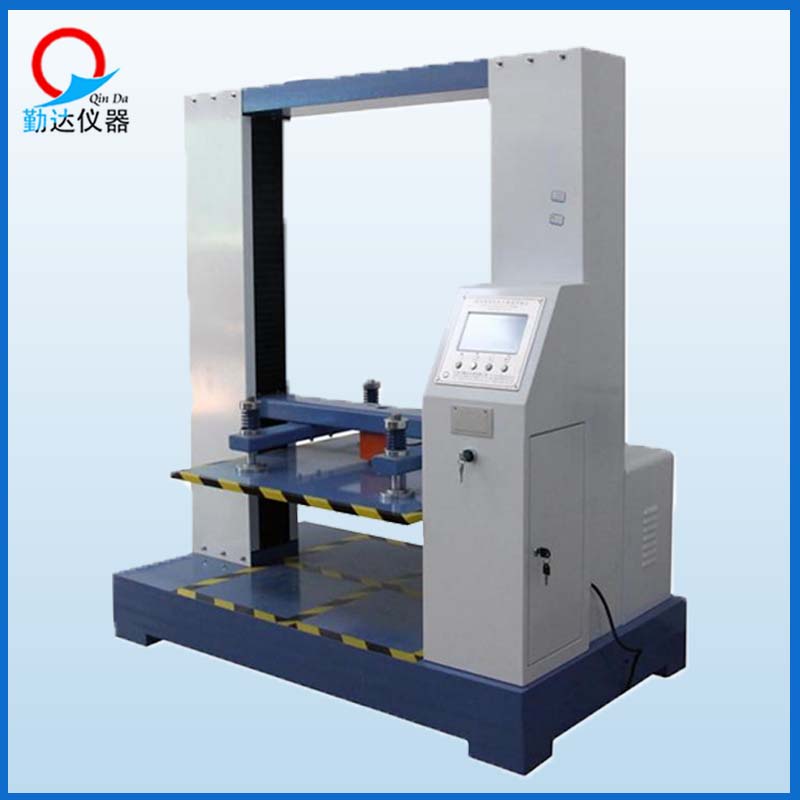

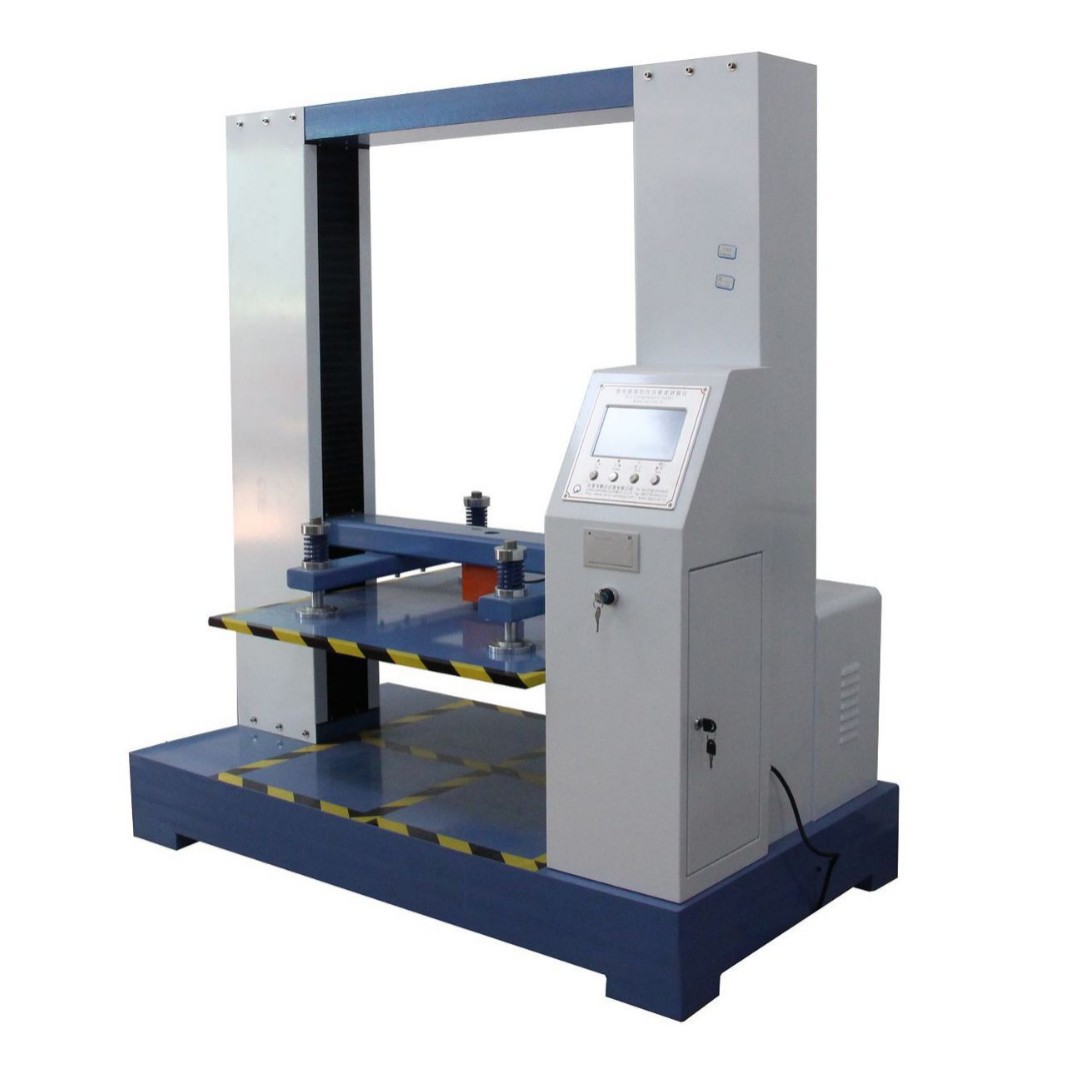

＞＞＞Product pictures

＞＞＞Standard

ISO2872 "Packaging-Transportable Packaged Articles in Integrity and Fullness-Pressure Test" ISO2874 "Packaging-Transportable Packaged Articles in Integrity and Fullness-Stacking Test Using Pressure Tester"
GB4857.4 "Packaging-Basic Tests for Transportable Packaged Articles-Part 4: Methods for Compression and Stacking Tests Using Pressure Tester"

＞＞＞Parameter(we support customization parameters)

* capacity:         ≤3000KG
* Display mode:     high-definition color touch screen
* Unit:             kgf, N, LB (can be switched at will)
* Resolution:        1/10,000
* accuracy:          within ±1%
* Test space:      D800*W800*H1000MM (can also be customized according to your requirements)
* Test speed standard:    adjustable from 2 to 300mm/min
* Printing function:    force value, deformation amount, maximum value, mini mum value, average value, standard deviation, date, time, product number, specification, material
* Can be used for pressure holding test (stacking test):   The pressure holding force can be set arbitrarily
* Memorizable data:     40 sets.
* Force value, deformation value and time value are displayed by curve

* Data can be selectively deleted.
* One key test, automatic stop, automatic reset.
* Automatic calibration function.
* Date and time adjustment function.
* Shape size:   1400*800*1600MM
* Weight:      about 650 KG
* Power supply: 3∮, AC 220V

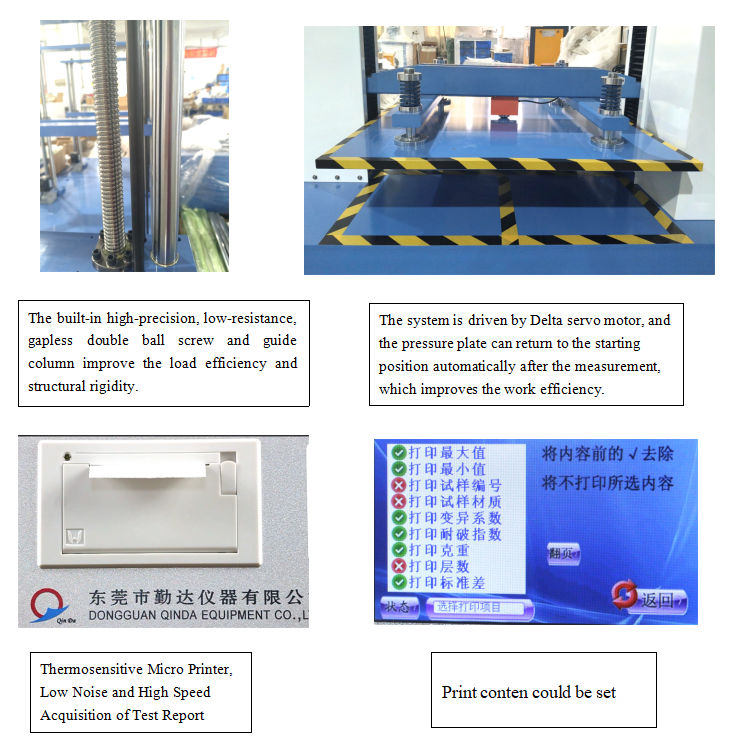

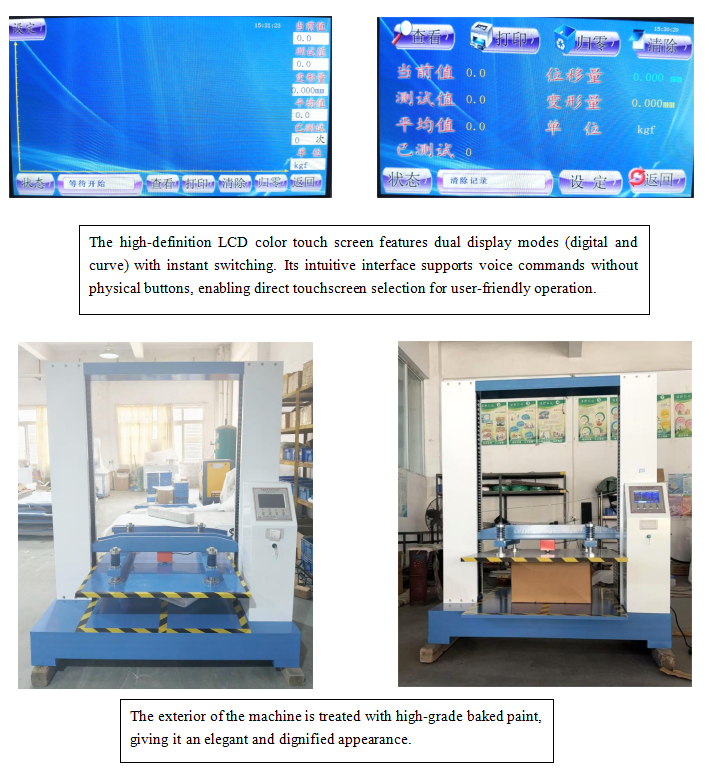

＞＞＞Features

＞＞＞Why choose us？

1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.

Please feel free to contact us any time if you have problems.
