QD-3003 Folding endurance tester (MIT method)
＞＞＞Introduction
About product
A special instrument for measuring the folding fatigue strength of paper, cardboard and other sheet materials (such as copper foil in the electronics industry) with a thickness of less than 1mm. It is mainly used by carton factories, quality inspection institutes and papermaking testing departments of colleges and universities for the testing of folding strength of paper and cardboard.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

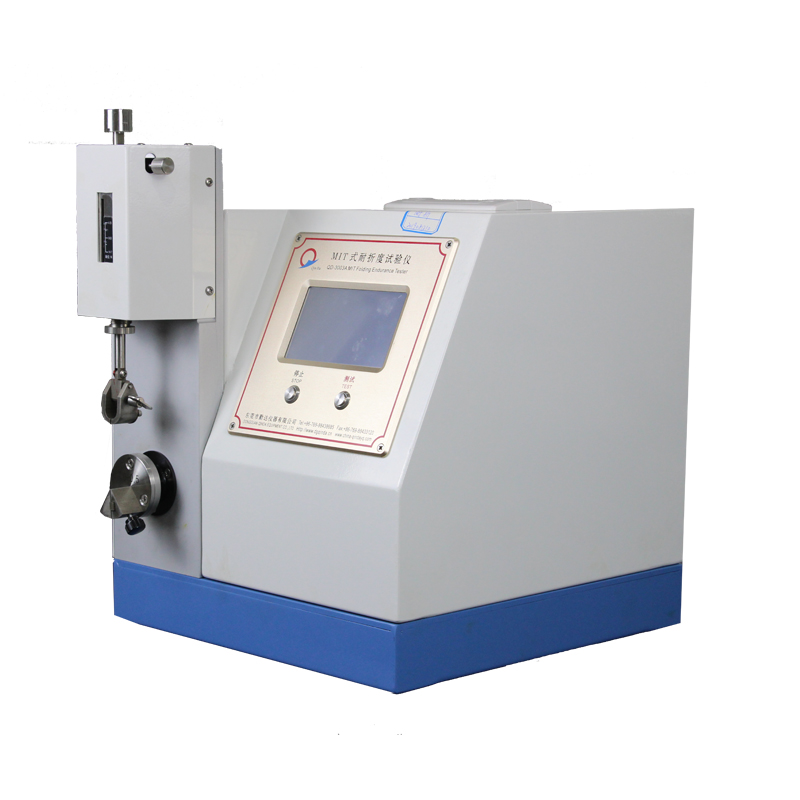

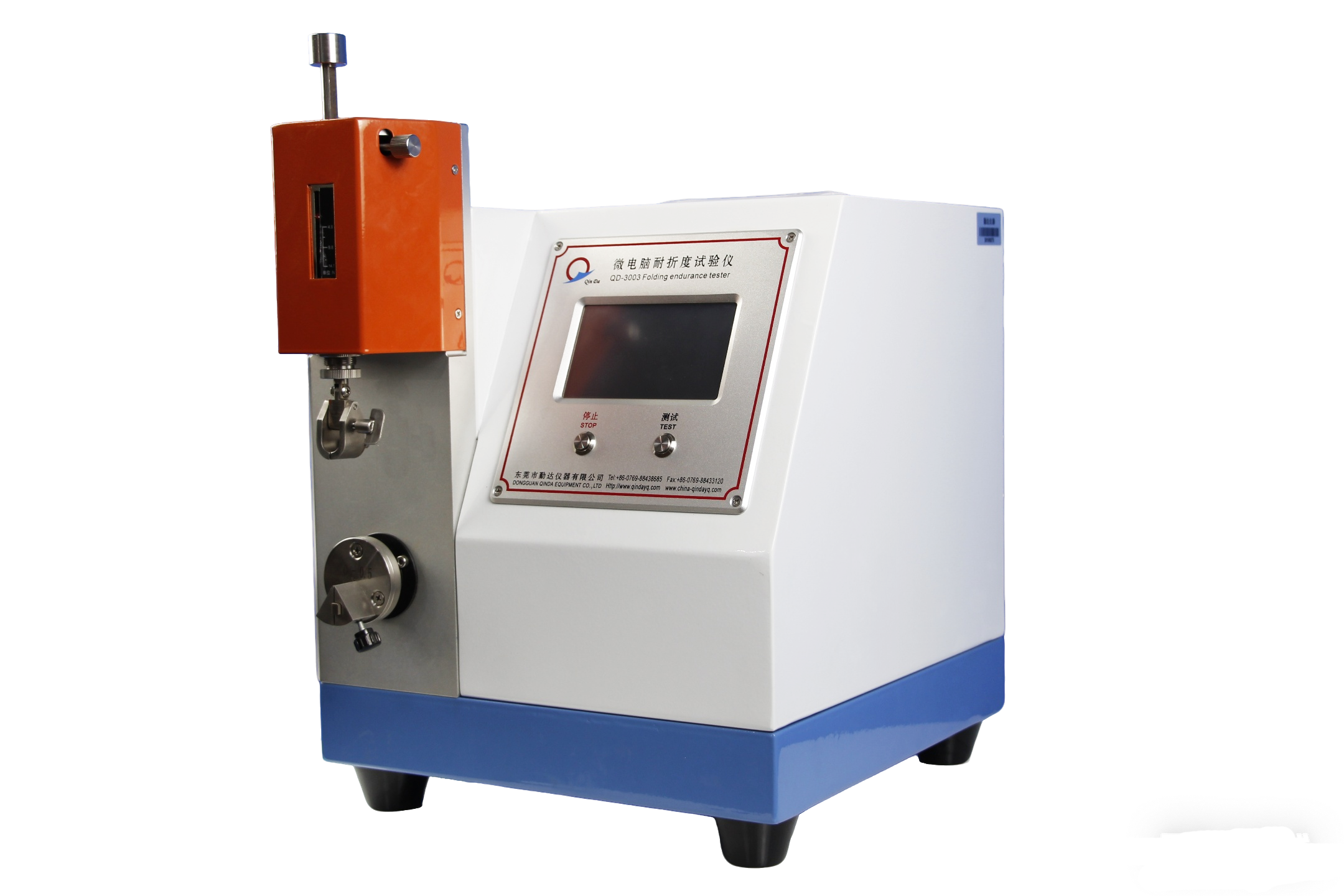

＞＞＞Product pictures
＞＞＞Standard
GB/T 2679.5 《Determination of Resistance of Paper and Cardboard (MIT Resistance Tester method)》
ISO5626 《Paper-Foldability test》
＞＞＞Parameters(we support customization parameters)
| Parameter Item |
Technical Specification |
| Number of folds |
1 to 999,999 times |
| Folding angle |
(135 ± 2)° |
| Folding speed |
(175±10) times per minute |
| Sample width |
(15 ± 0.1) mm |
| Spring tension |
(4.91~14.72) N |
| Clamping distance of the folding head |
0.50mm, 1.00mm |
| Arc radius of the fold |
R0.38mm±0.02mm |
| Human-machine interface |
high-definition LCD screen, bilingual system |
| Print output |
modular integrated thermal printer |
| Operating environment |
Indoor temperature: (20 ± 10) °CRelative humidity: ＜85% |
| Weight |
approximately 22kg |
| Dimensions |
300×360×440mm |
| Power supply |
AC220V±10%, 2A, 50Hz |
＞＞＞Standards
GB/T 2679.5 《Determination of Resistance of Paper and Cardboard (MIT Resistance Tester method)》
ISO5626 《Paper-Foldability test》
＞＞＞Features
1.The computerized control system uses a digital circuit centered around a microcontroller, achieving simple human-machine interaction through Chinese LCD display prompts and panel key commands;
2.Fully automatic measurement with intelligent judgment capabilities;
3.One-click system reset function;
4.The instrument employs photoelectric control technology to automatically return the folding chuck to its original position after each experiment, facilitating subsequent operations;
5.Powerful data processing functions not only convert the number of double folds for a single sample and corresponding values but also aggregate experimental data from multiple samples in the same group, providing statistics such as maximum, mini mum, and average values.Additionally, it offers data storage, statistical analysis, and printing capabilities;
6.The instrument is compact and aesthetically pleasing, with high-end paint treatment for easy maintenance; after years of practical testing, it has proven to be a reliable transmission method.
7.The guide column improves the load efficiency and structural rigidity;
The product performance is stable and reliable, the measurement accuracy is high, the test software function is powerful, and the operation is simple and easy to understand.
