Canadian Standard Freeness Tester
＞＞＞Introduction
About product
The standard freeness tester measures pulp freeness. It is mainly applied to test values for production‑control of groundwood pulp, and also widely used for evaluating the change in drainability of various chemical pulps during beating and refining. Large quantities of fine fibres are generated in pulp processing, which may occasionally lead to abnormally elevated freeness readings (false freeness) below 100 mL. The freeness value does not necessarily correlate with the drainage performance of pulp on the paper‑machine wire.
Measurement Principle and Specifications
Freeness characterizes the drainability of diluted pulp suspension (3 g oven‑dry pulp in 1 L water), also referred to as freeness or drainage rate. It reflects the surface condition and swelling behaviour of fibres. In addition, test results are affected by experimental conditions such as pulp preparation, temperature and water quality.
Canadian Standard Freeness (CSF) is defined as the drainability of 1000 mL pulp suspension with a consistency of (0.3±0.0005) % at 20 ℃, measured by a Canadian freeness tester under specified conditions. The CSF value is expressed as the volume of water (mL) flowing out from the instrument side tube.
Specifications: Measuring range: 0～1000 CSF
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

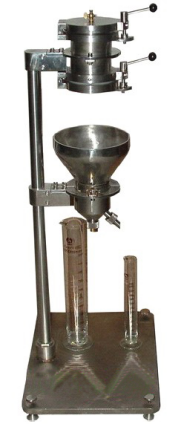

＞＞＞Product pictures
＞＞＞Standard
QB/T 1669-1992，TAPPI T227，ISO 5267/2，AS/NZ 1301，206S,BS6035 part 2,CPPA C1,and SCAN C21
＞＞＞Parameters(we support customization parameters)
Overall dimensions：520mm x 360mm x 1180mm；
Instrument Weight： About 45kg；
＞＞＞Features
1.All pulp‑contact parts made of stainless steel
The chamber, funnel and screen plate in contact with pulp are constructed of high‑quality stainless steel. It features corrosion resistance, low pulp adhesion and easy cleaning. It prevents sample contamination and satisfies sanitary requirements for pulp testing.
2.Quick-open Sealed Hinged Lid Structure
The top cover adopts a hinge type quick lock mechanism for easy opening and closing. The sealing gasket provides reliable sealing. Simple operation enables fast sample loading and unloading, suitable for frequent laboratory tests. A ball type air inlet valve is fitted at the top to realize rapid and steady discharge of pulp stock.
3.Split‑type Funnel and Discharge Valve Assembly
The lower conical funnel is integrally machined. The discharge knob valve is equipped with a knurled anti‑slip knob for manual on‑off discharge control. It is easy to disassemble for flushing, with no dead corners for pulp‑stock residue.
4.Rigid Aluminum Alloy Mounting Base
The funnel‑chamber assembly is fixed by a precision aluminum‑alloy flange base. High structural rigidity eliminates shaking during operation, ensures split‑flow measurement accuracy and delivers excellent overall mechanical stability.
5.Compliant with Canadian Standard Freeness (CSF) Test Principle
It performs standard‑specified proportional split‑flow for pulp stock, accurately collects filtrate volume from the side tube to read CSF value directly. Measuring range: 0‑1000 CSF. Suitable for drainability testing of mechanical pulp and chemical pulp after beating and refining.
6.Easy‑maintenance Design
All wetted parts are detachable without dirt‑trapping gaps. Components can be directly water‑washed upon test completion. Simple disassembly supports routine maintenance and replacement of consumables including screen plate and sealing gasket.
＞＞＞Details
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
